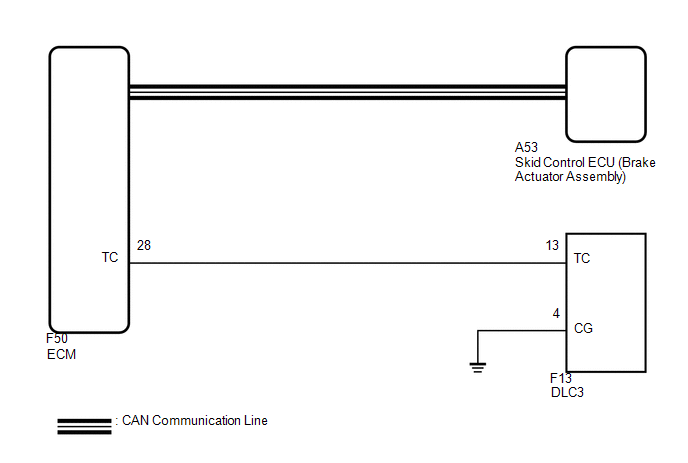

TC and CG Terminal Circuit [08/2015 - 08/2019]: Wiring Diagram

GTY539414

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
