System Diagram [08/2019 - 08/2022]

HINT:

Refer to System Diagram of CAN Communication System.

Refer to SYSTEM DIAGRAM [08/2019 - 08/2021] , or refer to SYSTEM DIAGRAM [08/2021 - 08/2022]

1. COMBINATION METER ASSEMBLY DIAGRAM

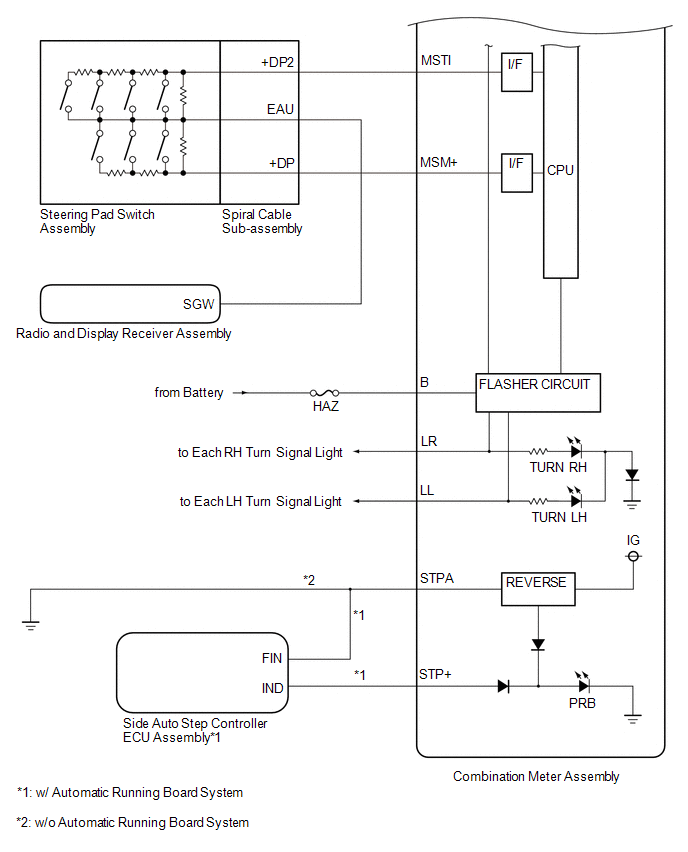

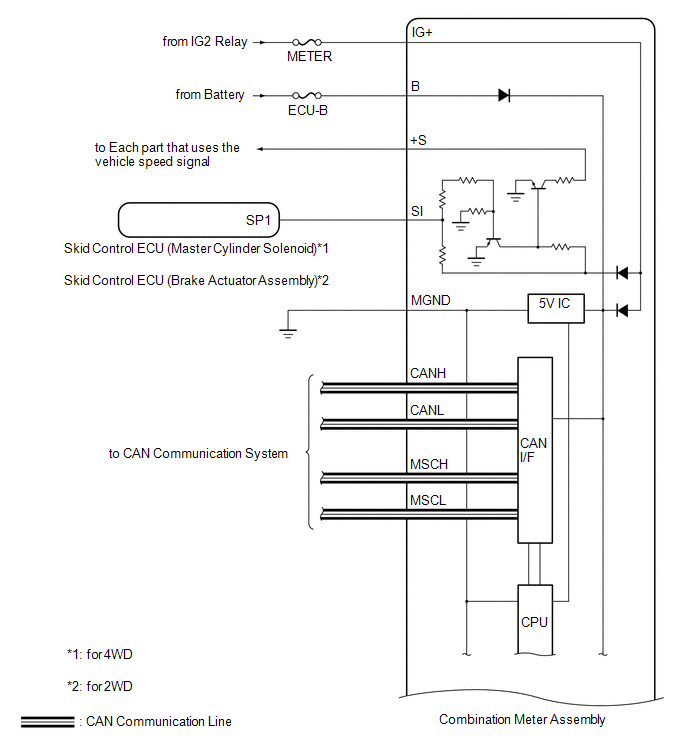

   Fig 1: Combination Meter Assembly Wiring Diagram [08/2019 - 08/2022] (1 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

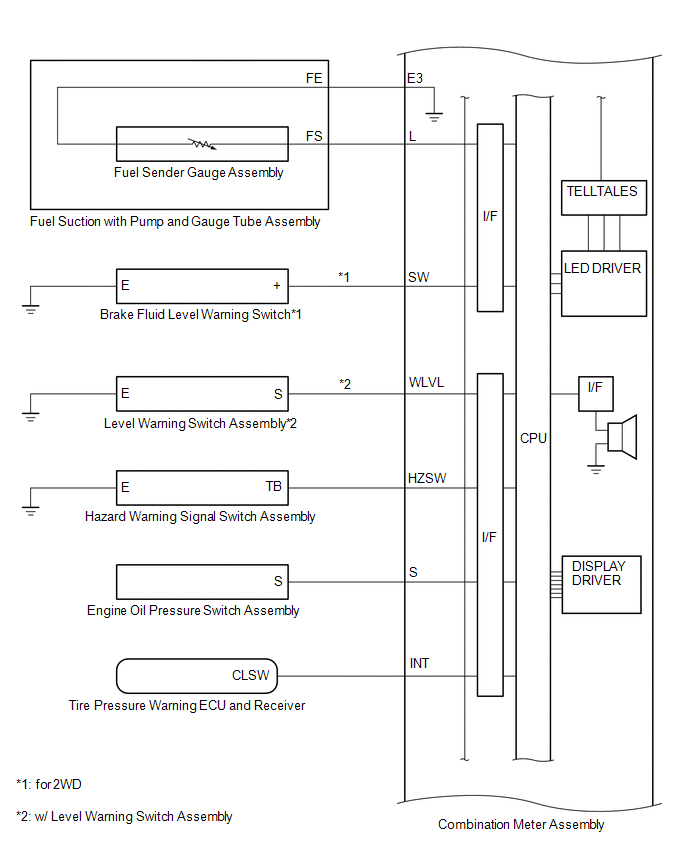

   Fig 2: Combination Meter Assembly Wiring Diagram [08/2019 - 08/2022] (2 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

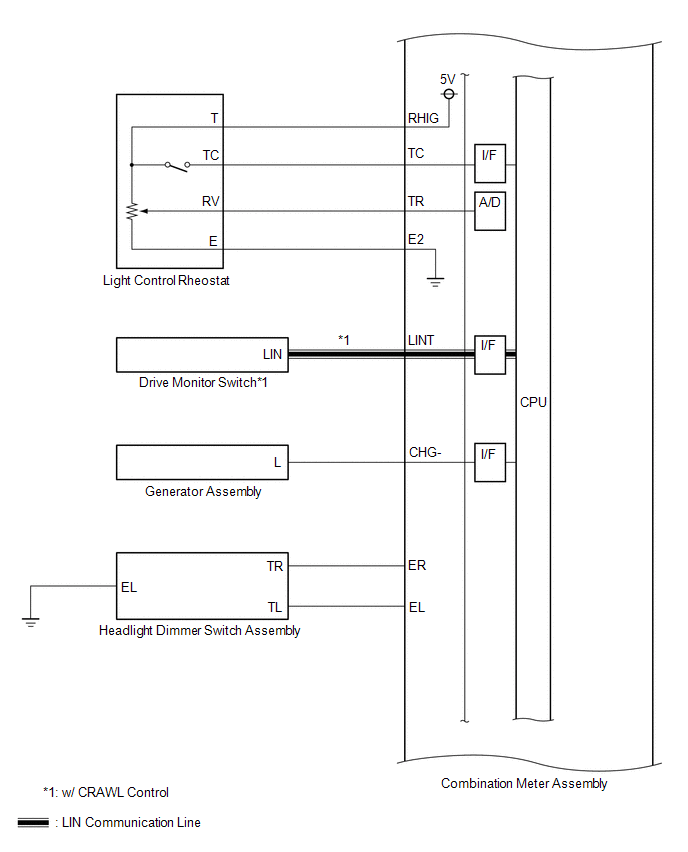

   Fig 3: Combination Meter Assembly Wiring Diagram [08/2019 - 08/2022] (3 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 4: Combination Meter Assembly Wiring Diagram [08/2019 - 08/2022] (4 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. TURN SIGNAL LIGHT DIAGRAM

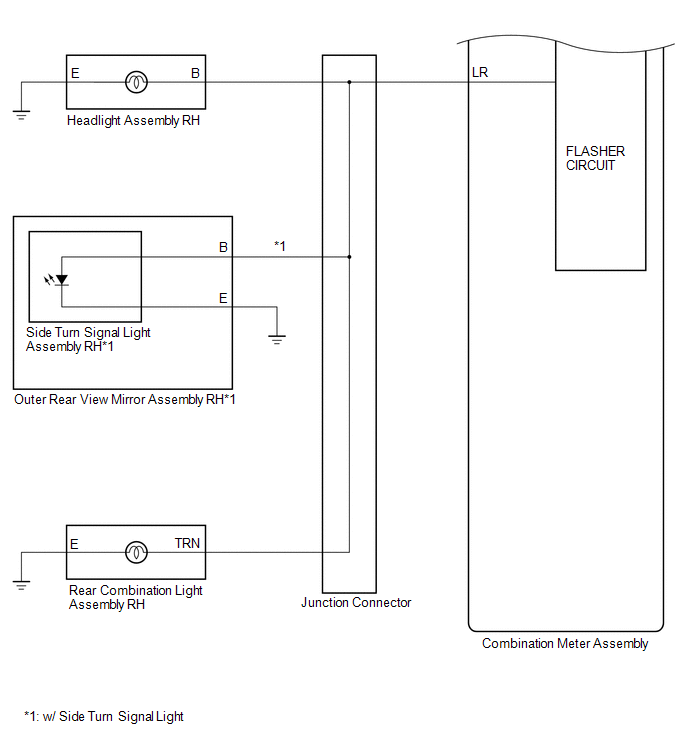

   Fig 5: Turn Signal Light Diagram Wiring Diagram [08/2019 - 08/2022] (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

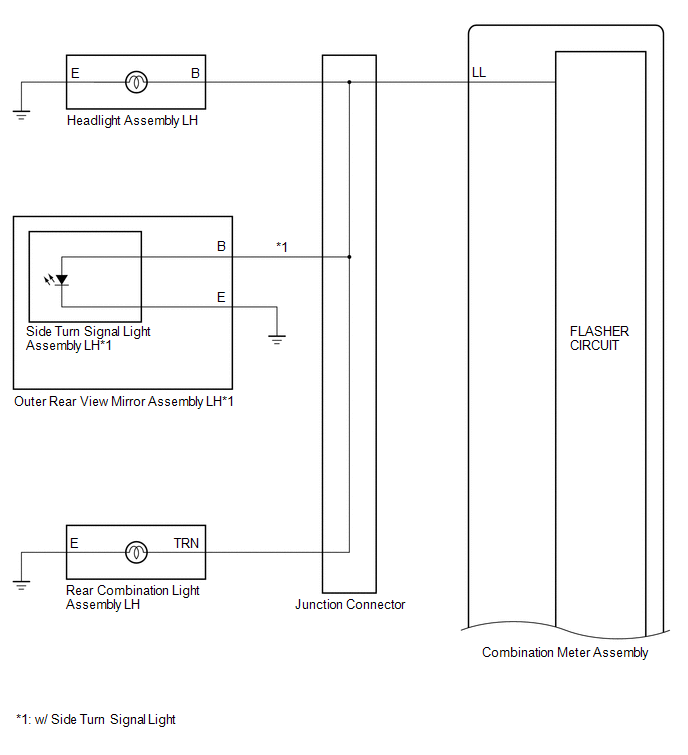

   Fig 6: Turn Signal Light Diagram Wiring Diagram [08/2019 - 08/2022] (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. ILLUMINATION DIAGRAM

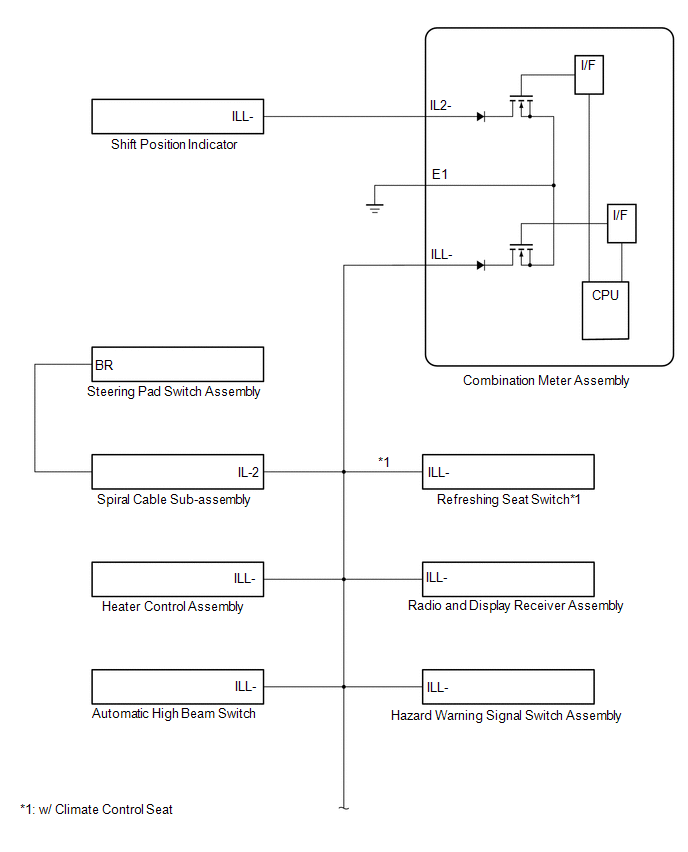

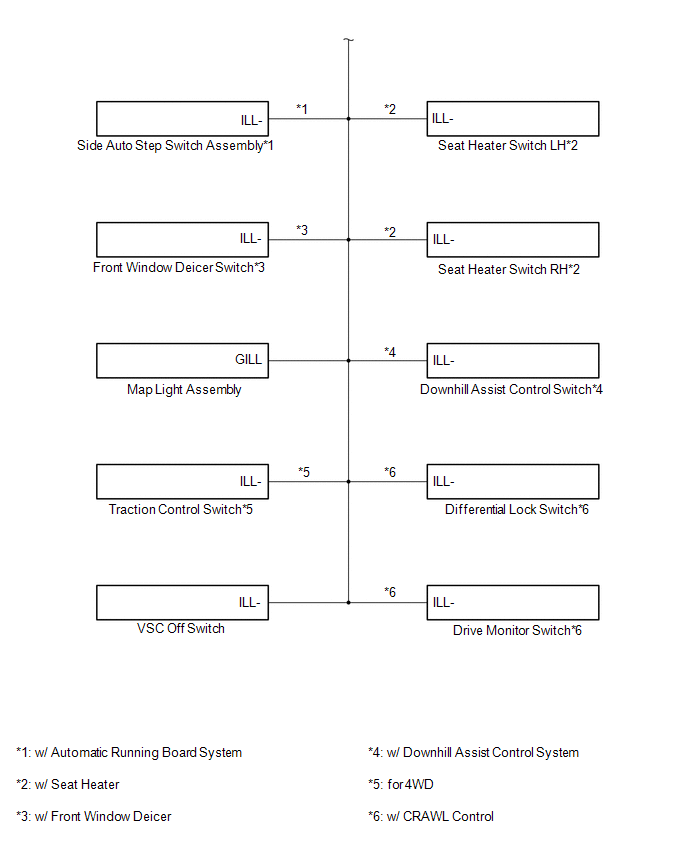

   Fig 7: Illumination Wiring Diagram [08/2019 - 08/2022] (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 8: Illumination Wiring Diagram [08/2019 - 08/2022] (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

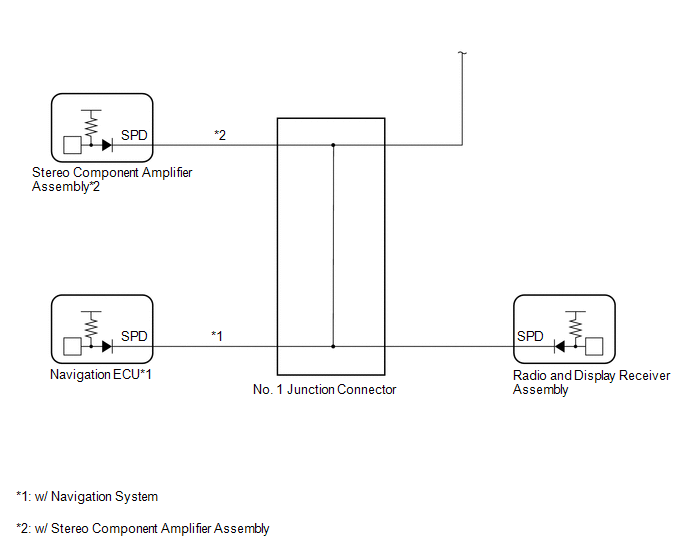

4. SPEED SIGNAL DIAGRAM

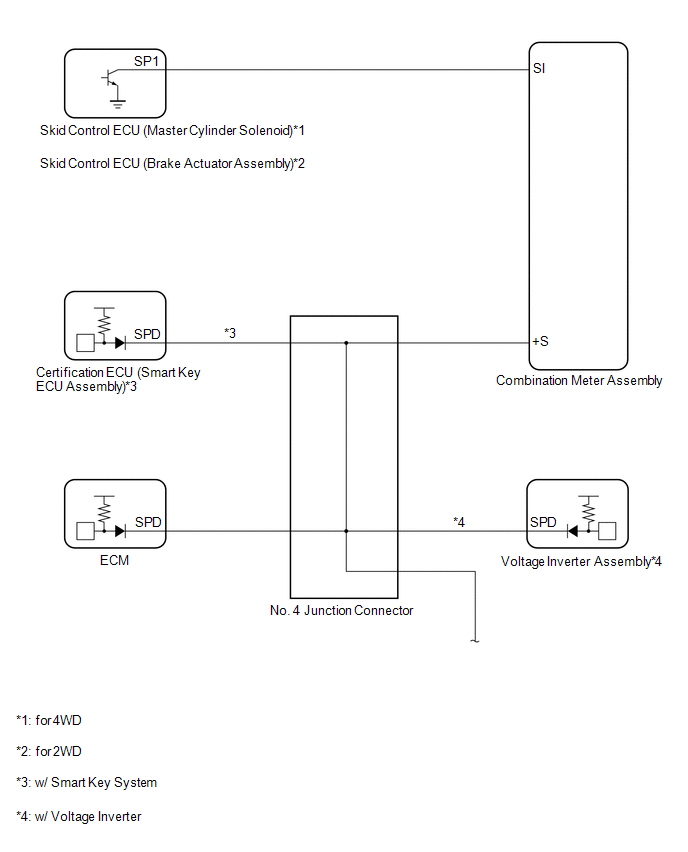

   Fig 9: Speed Signal Wiring Diagram [08/2019 - 08/2022] (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 10: Speed Signal Wiring Diagram [08/2019 - 08/2022] (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
