Removal [03/2019 - ]: Procedure

REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to REMOVAL [03/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]
REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
Refer to PROCEDURE - Step 15 [03/2019 - 07/2020] , or refer to PROCEDURE - Step 15 [07/2020 - ]

REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

NOTE:

Electrostatic discharge.
Damage to or destruction of electrical components.
- Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
- For additional information see:
  Refer to PRECAUTION [03/2019 - ]

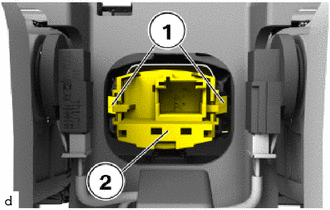

Disengage the claws (1) to remove the hazard warning signal switch assembly (2).
