Components [03/2019 - 07/2022]

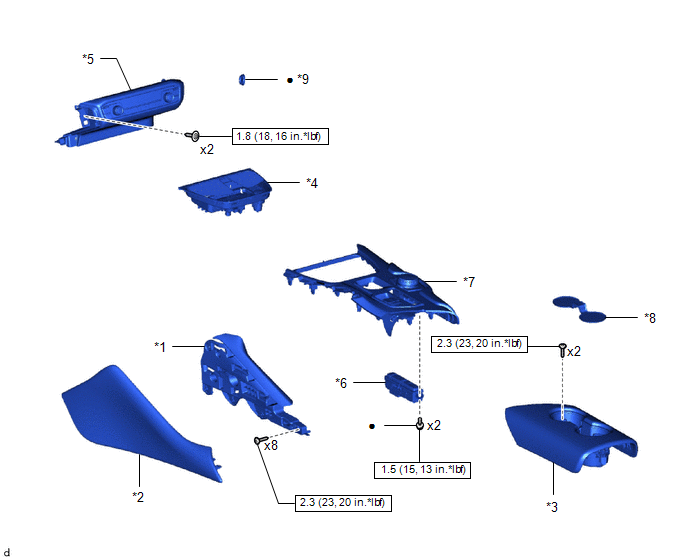

Fig 1: Combination Switch (For Console Box) Replacement Components With Torque Specifications [03/2019 - 07/2022]
| Callout | Description | Callout | Description |
| *1 | CONSOLE PANEL AND CONSOLE PANEL RETAINER | *2 | CONSOLE SIDE PANEL |
| *3 | FRONT CONSOLE ARMREST ASSEMBLY | *4 | FRONT CONSOLE BOX COVER |
| *5 | INSTRUMENT PANEL FINISH LOWER PANEL | *6 | PATTERN SELECT SWITCH ASSEMBLY |
| *7 | UPPER CONSOLE PANEL SUB-ASSEMBLY | *8 | NO. 1 CONSOLE BOX SILENCER PAD |
| *9 | RUBBER PLUG | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
