System Diagram [02/2019 - 12/2021]

WARNING: This page is about a different variant/trim than selected.

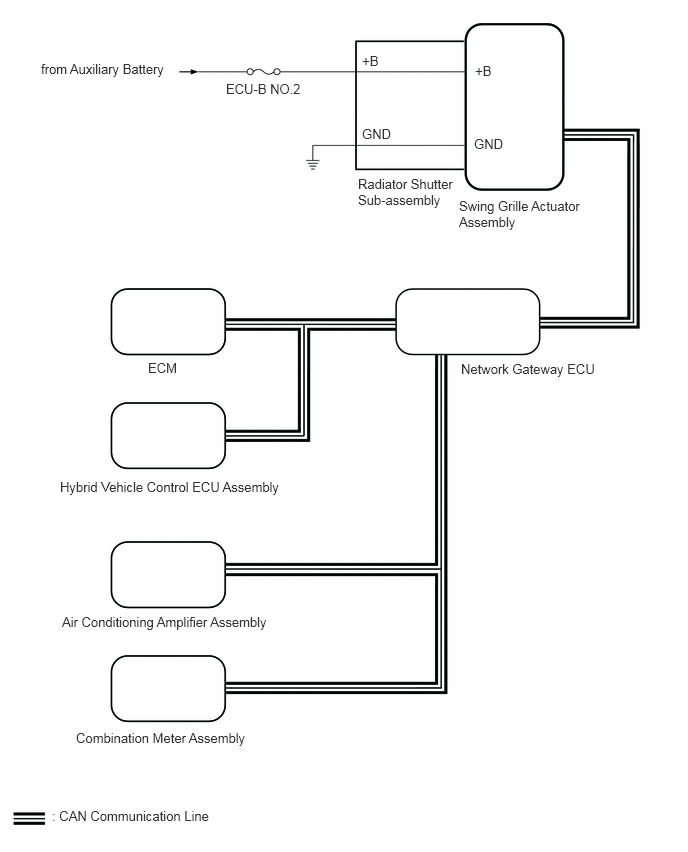

Fig 1: Grille Shutter System (for HV Model) Diagram [02/2019 - 12/2021]
GTY927548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
