System Diagram [11/2018 - 10/2019]
WARNING: This page is about a different variant/trim than selected.

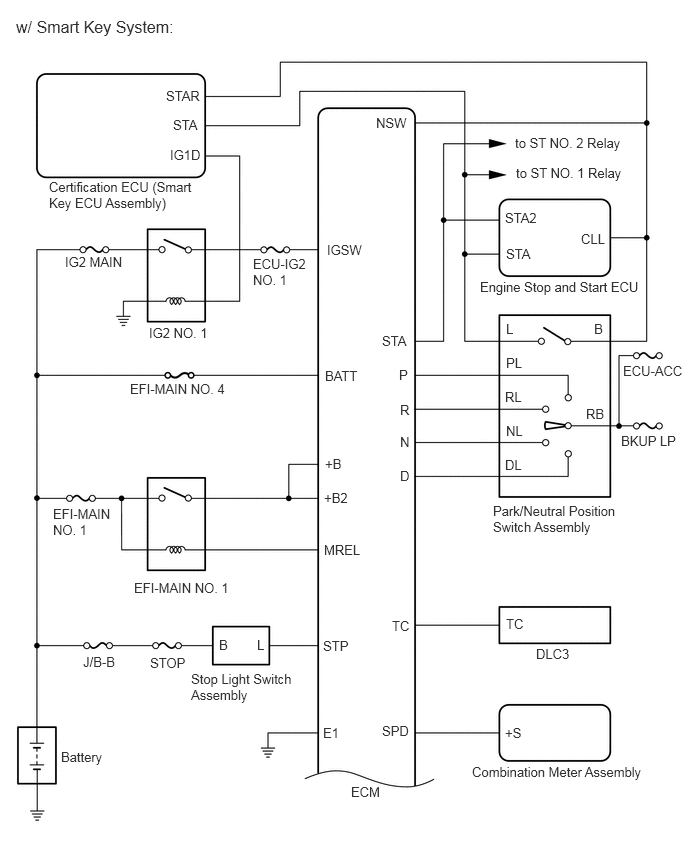

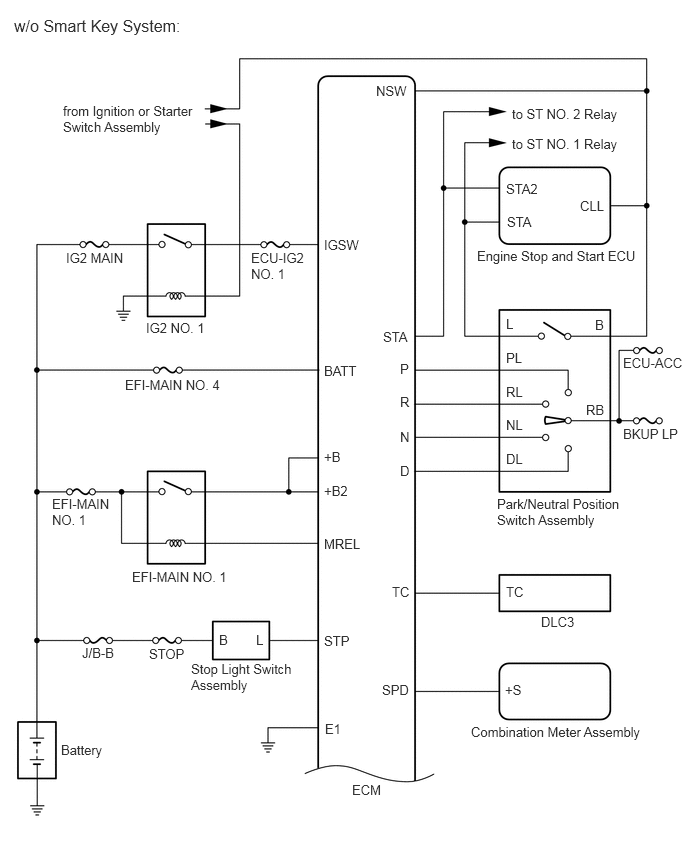

w/ Stop and Start System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
w/ Stop and Start System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

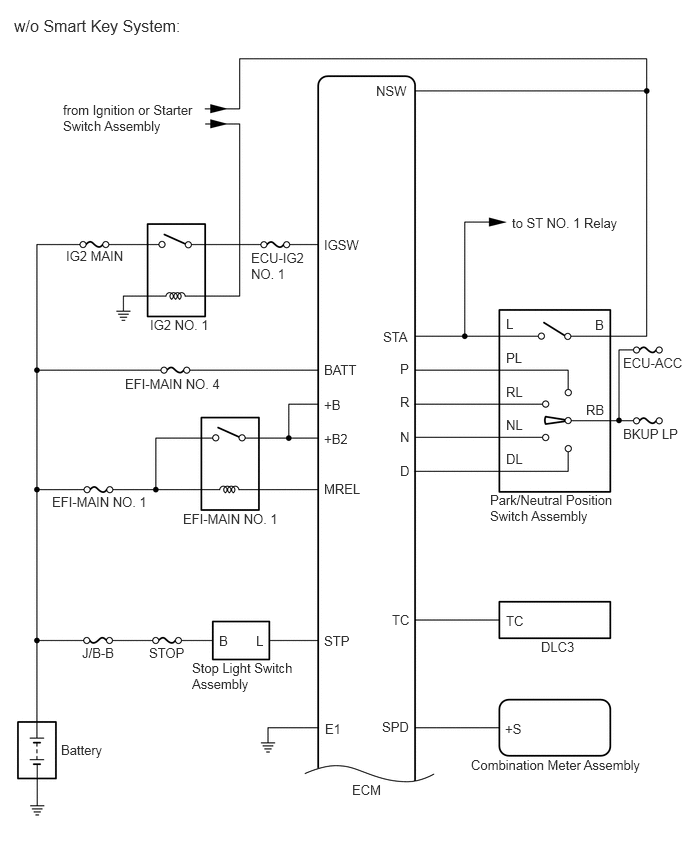

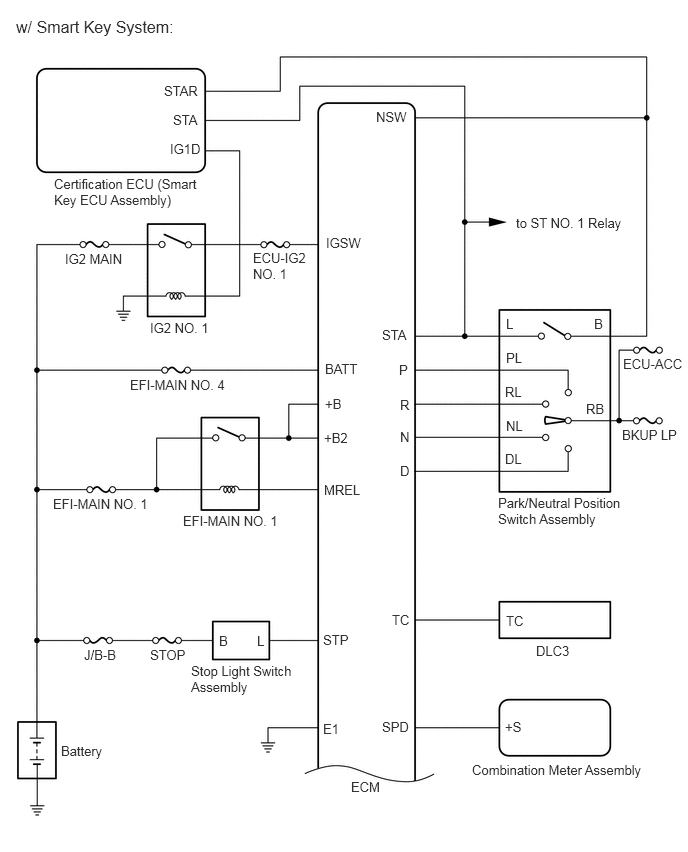

w/o Stop and Start System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
w/o Stop and Start System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
