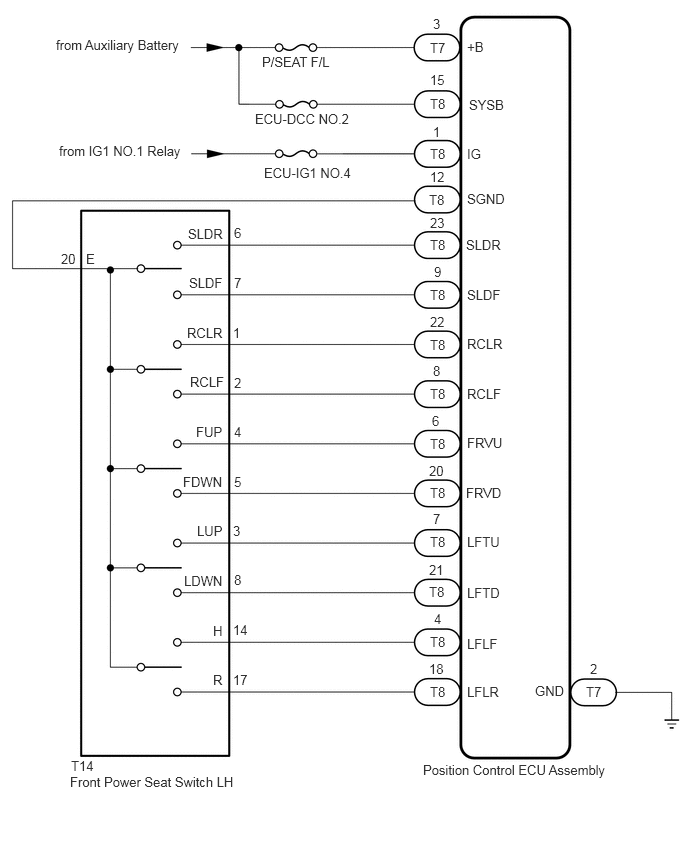

Front Power Seat does not Operate with Front Power Seat Switch [11/2018 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
  1. GTY861047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
