Section 169 (Front Power Seat Control System (HV, W/ Memory) - Diagnostic Codes & Symptom Tests (1 Of 2))
>>
FRONT POWER SEAT CONTROL SYSTEM (for HV Model with Memory)
>>
DTC B2653: Lifter Sensor Malfunction [11/2018 - ]
>>

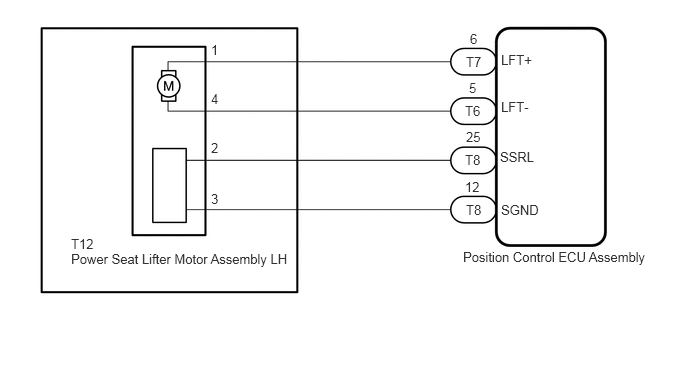

Wiring Diagram
DTC B2653: Lifter Sensor Malfunction [11/2018 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
