Terminals Of ECM [08/2020 - ]

WARNING: This page is about a different variant/trim than selected.

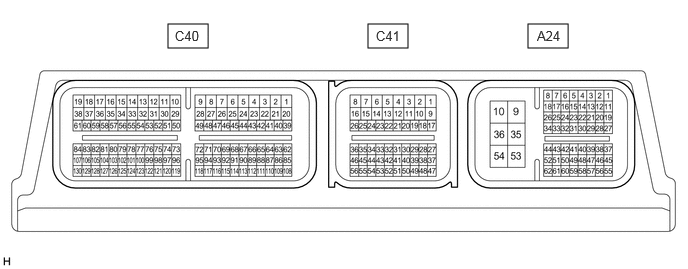

  1. ECM
    GTY899868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    The standard voltage and resistance of each ECM terminal is shown in the table below.

    In the table, first follow the information under "Condition". Look under "Terminal No. (Symbol)" for the terminals to be inspected. The standard voltage or resistance between the terminals is shown under "Specified Condition".

    Use the illustration above as a reference for the ECM terminals.

    Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
    A24-1 (BATT) - A24-10 (E1) G - W-B Battery (for measuring battery voltage and for ECM memory) Always 11 to 14 V
    A24-8 (CANH) - A24-10 (E1) B - W-B CAN communication line Ignition switch ON Pulse generation
    A24-9 (+B) - A24-10 (E1) L - W-B Power source of ECM Ignition switch ON 11 to 14 V
    A24-10 (E1) - Body ground W-B - Body ground Ground Always Below 1 Ω
    A24-12 (PWMS) - A24-10 (E1) P - W-B SPORT mode switch (integration control and panel assembly) signal Ignition switch ON and SPORT mode switch (integration control and panel assembly) being pushed and held Below 1.5 V
    Ignition switch ON and SPORT mode switch (integration control and panel assembly) not pushed 11 to 14 V
    A24-13 (SPCN) - A24-10 (E1) Y - W-B NORMAL mode switch (integration control and panel assembly) signal Ignition switch ON and NORMAL mode switch (integration control and panel assembly) being pushed and held Below 1.5 V
    Ignition switch ON and NORMAL mode switch (integration control and panel assembly) not pushed 11 to 14 V
    A24-14 (S) - A24-10 (E1) GR - W-B S shift position switch signal Ignition switch ON and shift lever in S 11 to 14 V
    Ignition switch ON and shift lever not in S Below 1 V
    A24-18 (CANL) - A24-10 (E1) W - W-B CAN communication line Ignition switch ON Pulse generation
    A24-19 (SFTD) - A24-10 (E1) G - W-B Down-shift switch signal Ignition switch ON 11 to 14 V
    Ignition switch ON and shift lever held in "-" (Down shift) Below 1 V
    A24-20 (SFTU) - A24-10 (E1) W - W-B Up-shift switch signal Ignition switch ON 11 to 14 V
    Ignition switch ON and shift lever held in "+" (Up shift) Below 1 V
    A24-21 (STP) - A24-10 (E1) SB - W-B Stop light switch signal Brake pedal depressed 7.5 to 14 V
    Brake pedal released Below 1 V
    A24-23 (NSW) - A24-10 (E1) LG - W-B Park/neutral position switch signal Ignition switch ON and shift lever in P or N Below 1 V
    Ignition switch ON and shift lever not in P or N 11 to 14 V
    A24-30 (STA) - A24-10 (E1) G - W-B Starter signal Cranking 6.0 V or higher
    Ignition switch ON and shift lever in P or N Below 2 V
    A24-35 (+B2) - A24-10 (E1) L - W-B Power source of ECM Ignition switch ON 11 to 14 V
    A24-42 (SPD) - A24-10 (E1) V - W-B Vehicle speed signal from combination meter assembly Vehicle being driven Pulse generation
    C41-2 (SL6+) - C41-1 (SL6-) B - L Solenoid (SL6) valve signal 1st or Reverse gear selected Pulse generation
    C41-4 (SL3+) - C41-3 (SL3-) G - R Solenoid (SL3) valve signal 3rd, 7th or Reverse gear selected Pulse generation
    C41-6 (SL2+) - C41-5 (SL2-) R - GR Solenoid (SL2) valve signal 5th, 6th, 7th or 8th gear selected Pulse generation
    C41-8 (SL1+) - C41-7 (SL1-) LG - L Solenoid (SL1) valve signal 1st, 2nd, 3rd, 4th or 5th gear selected Pulse generation
    C41-10 (SLT+) - C41-9 (SLT-) GR - LG Solenoid (SLT) valve signal Engine idling Pulse generation
    C41-12 (SLU+) - C41-11 (SLU-) LG - V Solenoid (SLU) valve signal Lock-up ON Pulse generation
    C41-14 (SL5+) - C41-13 (SL5-) V - P Solenoid (SL5) valve signal 2nd or 8th gear selected Pulse generation
    C41-16 (SL4+) - C41-15 (SL4-) G - B Solenoid (SL4) valve signal 4th or 6th gear selected Pulse generation
    C41-19 (SL) - A24-10 (E1) P - W-B Solenoid (SL) valve signal
    • Shift lever in P, R or N
    • Lock-up OFF (shift lever in D)
    		 11 to 14 V
    C41-23 (D) - A24-10 (E1) R - W-B D shift position switch signal Ignition switch ON and shift lever in D or S 11 to 14 V
    Ignition switch ON and shift lever not in D or S Below 1 V
    C41-24 (N) - A24-10 (E1) LG - W-B N shift position switch signal Ignition switch ON and shift lever in N 11 to 14 V
    Ignition switch ON and shift lever not in N Below 1 V
    C41-25 (R) - A24-10 (E1) W - W-B R shift position switch signal Ignition switch ON and shift lever in R 11 to 14 V
    Ignition switch ON and shift lever not in R Below 1 V
    C41-26 (P) - A24-10 (E1) B - W-B P shift position switch signal Ignition switch ON and shift lever in P 11 to 14 V
    Ignition switch ON and shift lever not in P Below 1 V
    C41-33 (NCB) - A24-10 (E1) B - W-B Power source for sensor
    (specific voltage)    		 Ignition switch ON 11 to 14 V
    C41-34 (NCO) - A24-10 (E1) V - W-B Transmission Revolution Sensor (NC) signal Vehicle being driven Pulse generation
    C41-35 (NTB) - A24-10 (E1) R - W-B Power source for sensor
    (specific voltage)    		 Ignition switch ON 11 to 14 V
    C41-36 (NTO) - A24-10 (E1) G - W-B Transmission Revolution Sensor (NT) signal Engine idling (shift lever in P or N) Pulse generation
    C41-46 (THO1) - C41-45 (ETHO) LG - L ATF temperature sensor signal ATF temperature 115°C (239°F) or higher Below 1.5 V
