Removal [02/2019 - 08/2020]: Procedure

• for 2WD:

  Refer to REMOVAL [02/2019 - 08/2020]

• for HV Model AWD:

  Refer to REMOVAL [02/2019 - 06/2020] , or refer to REMOVAL [06/2020 - 08/2020]

• for Gasoline Model AWD:

  Refer to REMOVAL [02/2019 - 10/2019] , or refer to REMOVAL [10/2019 - 08/2020]

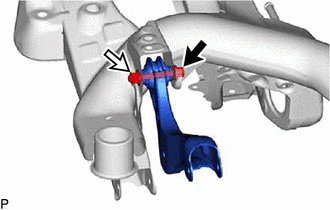

1. Remove the bolt, nut and rear upper control arm assembly LH from the rear suspension member sub-assembly.
   NOTE:

   Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the same procedure as for the LH side.
