Removal [02/2019 - 10/2019]: Procedure

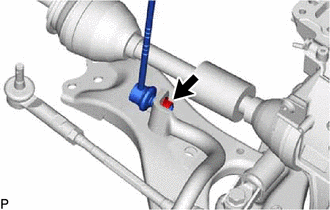

1. Remove the nut and separate the front stabilizer link assembly from the front stabilizer bar.
   NOTE:

   Do not damage the boot of the ball joint.

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the same procedure as for the LH side.

• for HV Model:

  Refer to REMOVAL [02/2019 - 10/2019]

• for Gasoline Model:

  Refer to REMOVAL [11/2018 - 10/2019]

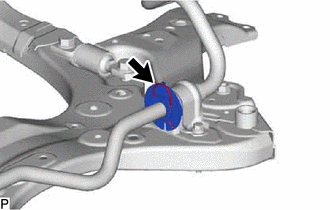

1. Remove the clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the front stabilizer bar protector from the front stabilizer bar.

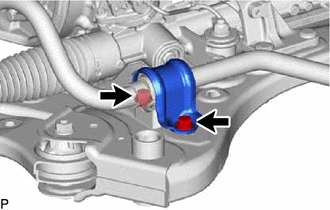

1. Remove the 2 bolts and front No. 1 stabilizer bracket LH from the front frame assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the same procedure as for the LH side.

1. Remove the front stabilizer bar with 2 front stabilizer bar bushings from the front frame assembly.

1. Remove the front No. 1 stabilizer bar bushing from the front stabilizer bar.

HINT:

Perform the same procedure as for the LH side.
