Removal [08/2020 - 12/2021]: Procedure

PRECAUTION
NOTE:
- After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
  Refer to PRECAUTION [11/2018 - ]
- When replacing the battery, use a new battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.

REMOVE DECK BOARD ASSEMBLY

Remove the deck board assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR NO. 2 FLOOR BOARD

Detach the 2 clips and 2 guides and remove the luggage trim service hole cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE BATTERY HOLE COVER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

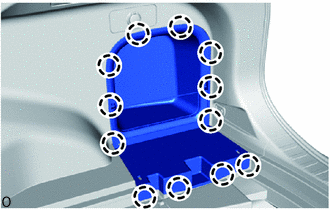

1. Detach the 12 claws and remove the battery hole cover.

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

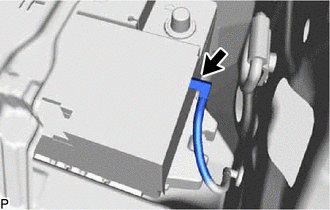

Loosen the nut, and disconnect the cable from the negative (-) auxiliary battery terminal.

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE AUXILIARY BATTERY

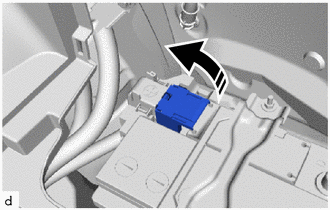

Open the connector cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

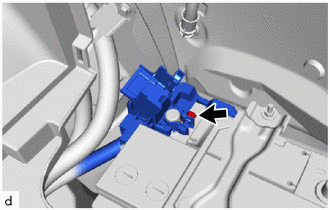

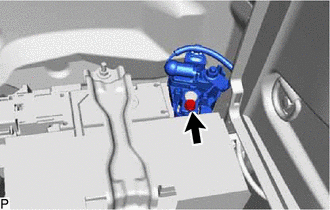

Loosen the nut and disconnect the cable from the positive (+) auxiliary battery terminal.

Disconnect the battery hose from the auxiliary battery.

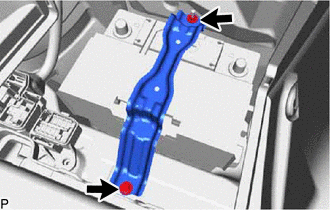

Remove the bolt, nut and battery clamp sub-assembly as shown in the illustration.

w/ No. 1 Battery Spacer:

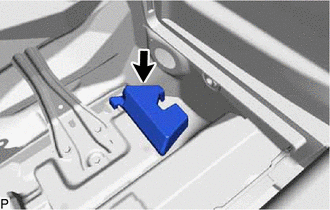

Remove the No. 1 battery spacer.
