Installation [11/2018 - 10/2023]: Procedure

INSTALL BATTERY

Install the battery to the vehicle.

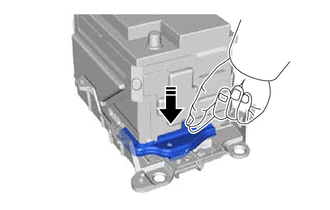

Install the No. 2 battery clamp with the bolt to the battery clamp sub-assembly.

GTY868710

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 18.5 N.m (189 kgf/cm, 14 ft.lbf)

Connect the cable to the positive (+) battery terminal and tighten the nut.
Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)
Attach the 2 claws to install the connector cover to the positive (+) battery terminal.

CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
1. Connect the cable to the negative (-) battery terminal and tighten the nut.
  w/o Stop And Start System

  Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

  w/ Stop And Start System

  Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  NOTE:
  When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

  Refer to INITIALIZATION [11/2018 - 02/2019] , or refer to INITIALIZATION [02/2019 - 10/2019] , or refer to INITIALIZATION [10/2019 - 06/2020] , or refer to INITIALIZATION [06/2020 - 08/2020] , or refer to INITIALIZATION [08/2020 - 12/2021] , or refer to INITIALIZATION [12/2021 - 10/2022] , or refer to INITIALIZATION [10/2022 - 10/2023]
