System Diagram [10/2022 - ]

WARNING: This page is about a different variant/trim than selected.

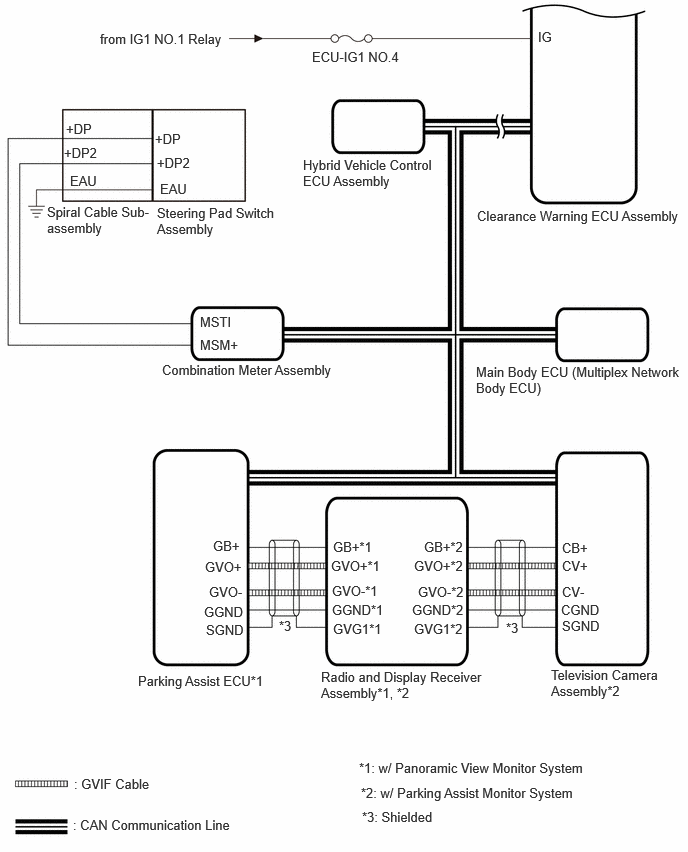

Fig 1: Intuitive Parking Assist System (For HV Model With Parking Support Brake System) Diagram [10/2022 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Intuitive Parking Assist System (For HV Model With Parking Support Brake System) Diagram [10/2022 - ] (2 Of 2)

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
Main Body ECU (Multiplex Network Body ECU)	Clearance Warning ECU Assembly	Destination information signal Steering wheel signal Popular name signal Grade signal	CAN Communication Line
Hybrid Vehicle Control ECU Assembly	Clearance Warning ECU Assembly	Shift position signal	CAN Communication Line
Combination Meter Assembly	Clearance Warning ECU Assembly	Clearance sonar main switch signal Clearance sonar mute switch signal Clearance sonar sound volume switch signal	CAN Communication Line
Clearance Warning ECU Assembly	Combination Meter Assembly	Sonar information signal Clearance sonar indicator illumination request signal Sonar information signal Clearance sonar indicator illumination request signal Sonar display request signal Sonar buzzer volume signal	CAN Communication Line
Clearance Warning ECU Assembly	Parking Assist ECU*1	Sonar information signal Sonar display request signal	CAN Communication Line
Clearance Warning ECU Assembly	Television Camera Assembly*2	Sonar information signal Sonar display request signal	CAN Communication Line
Parking Assist ECU*1	Radio and Display Receiver Assembly	Video signal	GVIF Cable
Television Camera Assembly*2	Radio and Display Receiver Assembly	Video signal	GVIF Cable
