Parts Location [02/2019 - 12/2021]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
SWING GRILLE ACTUATOR ASSEMBLY |
*2 |
RADIATOR SHUTTER SUB-ASSEMBLY |
| *3 |
ECM |
- |
- |

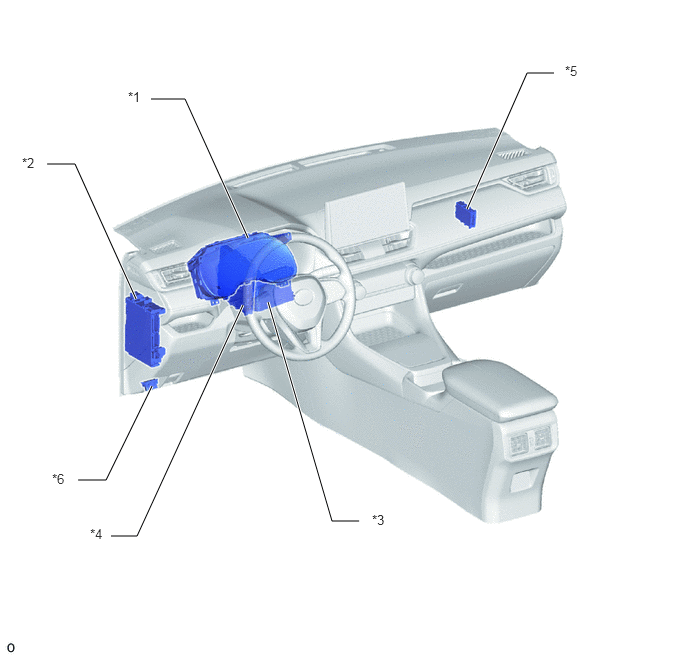

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
COMBINATION METER ASSEMBLY |
*2 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-B NO. 2 FUSE |
| *3 |
AIR CONDITIONING AMPLIFIER ASSEMBLY |
*4 |
HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *5 |
NETWORK GATEWAY ECU |
*6 |
DLC3 |
