Components [02/2019 - 06/2020]

WARNING: This page is about a different variant/trim than selected.
Fig 1: Frame Wire Replacement Components [02/2019 - 06/2020] (1 Of 8)
GTY919653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BATTERY SERVICE HOLE COVER *2 SERVICE PLUG GRIP
Fig 2: Frame Wire Replacement Components With Torque Specifications [02/2019 - 06/2020] (2 Of 8)
GTY920765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

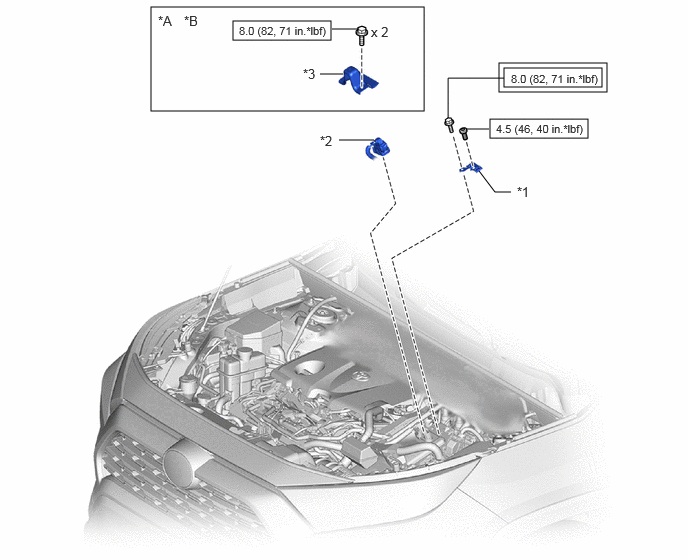

Callout Description Callout Description
*A for AWD *B w/ NO. 2 INVERTER PROTECTOR
*1 CONNECTOR COVER ASSEMBLY *2 ENGINE ROOM MAIN WIRE
*3 NO. 2 INVERTER PROTECTOR - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
Fig 3: Frame Wire Replacement Components With Torque Specifications [02/2019 - 06/2020] (3 Of 8)
GTY883598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BATTERY SERVICE COVER BOARD *2 BENCH TYPE REAR SEAT CUSHION ASSEMBLY
*3 NO. 2 BATTERY SERVICE COVER BOARD *4 NO. 3 BATTERY SERVICE COVER BOARD
*5 REAR DOOR SCUFF PLATE LH *6 REAR DOOR SCUFF PLATE RH
*7 REAR SEAT CUSHION LEG SUB-ASSEMBLY *8 REAR SEAT CUSHION LOCK HOOK
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) • Non-reusable part
Fig 4: Frame Wire Replacement Components With Torque Specifications [02/2019 - 06/2020] (4 Of 8)
GTY994193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

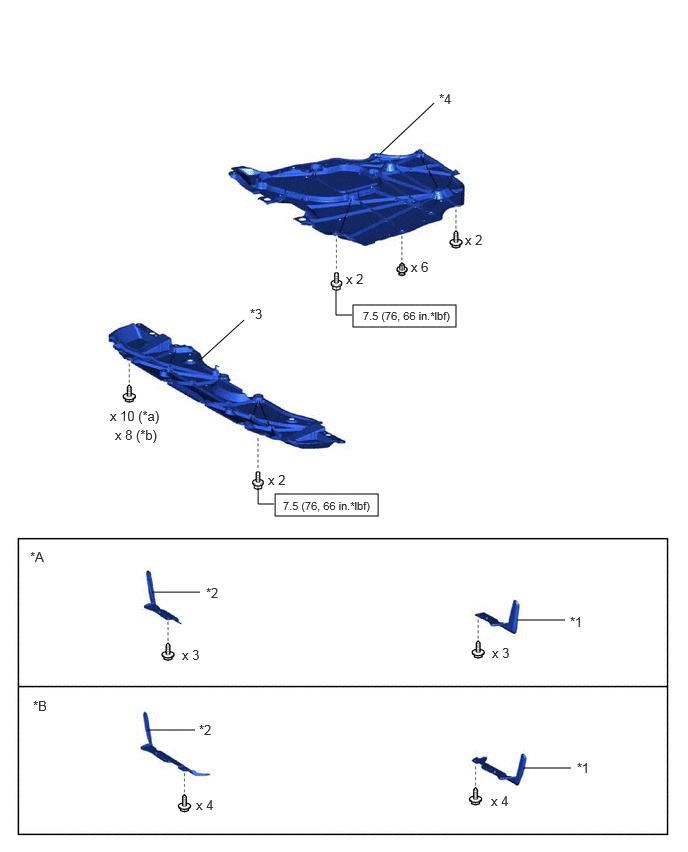

Callout Description Callout Description
*A for Short Type *B for Long Type
*1 FRONT FENDER FRONT SPLASH SHIELD LH *2 FRONT FENDER FRONT SPLASH SHIELD RH
*3 NO. 1 ENGINE UNDER COVER *4 NO. 2 ENGINE UNDER COVER ASSEMBLY
*a Short Type Front Fender Front Splash Shield *b Long Type Front Fender Front Splash Shield
N.m (kgf/cm, ft.lbf): Specified torque - -
Fig 5: Frame Wire Replacement Components With Torque Specifications [02/2019 - 06/2020] (5 Of 8)
GTY936445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE UNDER COVER HEAT INSULATOR *2 FRONT CENTER FLOOR COVER
*3 FRONT EXHAUST PIPE ASSEMBLY *4 FRONT FLOOR COVER LH
*5 FRONT FLOOR COVER RH *6 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Fig 6: Frame Wire Replacement Components With Torque Specifications [02/2019 - 06/2020] (6 Of 8)
GTY907595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE SERVICE COVER CUSHION *2 FRONT LOWER NO. 1 FLOOR HEAT INSULATOR
*3 FRONT NO. 1 FLOOR HEAT INSULATOR *4 FRONT NO. 2 FLOOR HEAT INSULATOR
*5 NO. 2 ENGINE SERVICE COVER CUSHION *6 TRANSMISSION CONTROL CABLE ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
Fig 7: Frame Wire Replacement Components With Torque Specifications [02/2019 - 06/2020] (7 Of 8)
GTY879127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

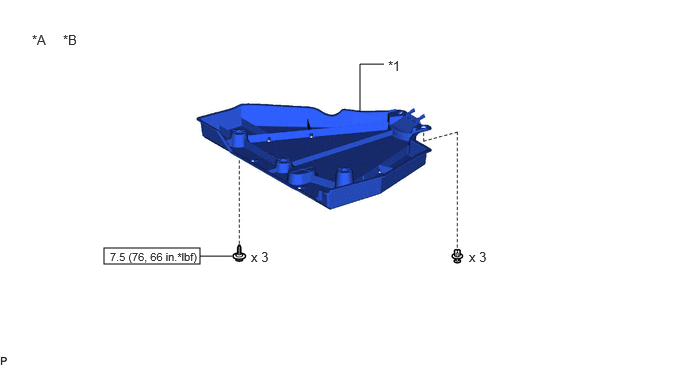

Callout Description Callout Description
*A for AWD *B w/ NO. 1 FLOOR UNDER COVER
*1 NO. 1 FLOOR UNDER COVER - -
N.m (kgf/cm, ft.lbf): Specified torque - -
Fig 8: Frame Wire Replacement Components With Torque Specifications [02/2019 - 06/2020] (8 Of 8)
GTY905682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

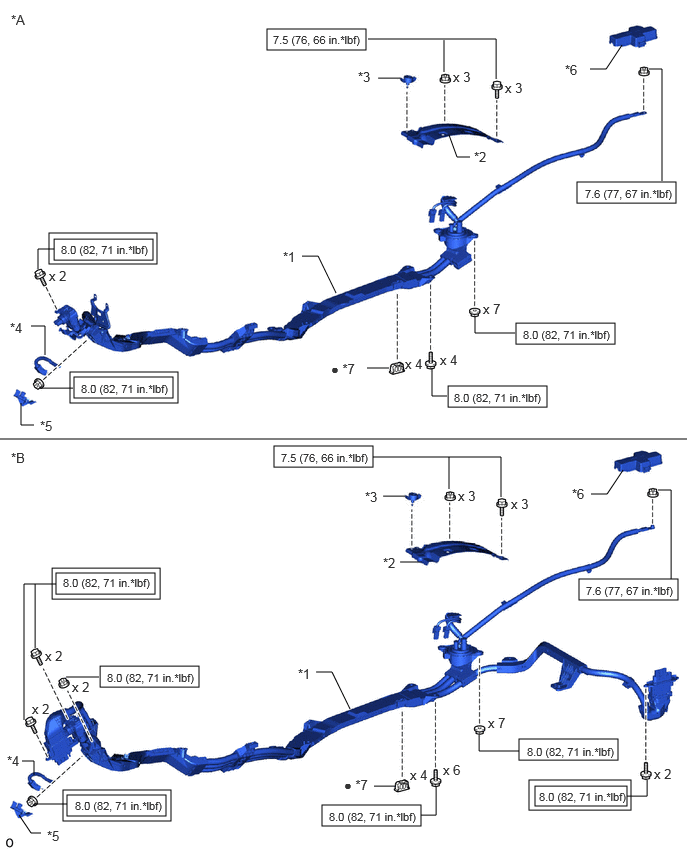

Callout Description Callout Description
*A for 2WD *B for AWD
*1 HV FLOOR UNDER WIRE *2 NO. 1 HV BATTERY COVER PANEL RH
*3 BATTERY COVER LOCK STRIKER *4 ENGINE ROOM MAIN WIRE
*5 NO. 1 TERMINAL CAP *6 NO. 4 RELAY BLOCK COVER
*7 STUD CLAMP - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part - -
