Installation [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL SERVICE PLUG GRIP
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    Before installing the service plug grip, check that no parts or tools remain and that the high voltage terminals and connectors are connected securely.

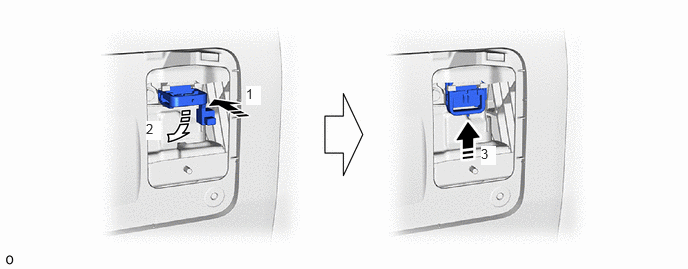

    1. While wearing insulated gloves, and temporarily install the service plug grip as indicated by the arrow (1) shown in the illustration.
      GTY943814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Rotate the handle of the service plug grip 90° toward the HV battery and slide it in the direction indicated by the arrow (3) shown in the illustration until a click sound is heard to install the service plug grip.
  2. INSTALL BATTERY SERVICE HOLE COVER

    See step  2 [11/2018 - 02/2019], or see step  2 [02/2019 - 06/2020], or see step  2 [06/2020 - 08/2020], or see step  2 [08/2020 - ]

  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 2 [08/2020 - ]

  4. INSTALL BATTERY HOLE COVER

    Refer to PROCEDURE - Step 3 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 3 [08/2020 - ]

  5. INSTALL REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 4 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - ]

  6. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 5 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 5 [08/2020 - ]
