Inspection [06/2020 - 12/2021]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSPECT HV SUPPLY STACK SUB-ASSEMBLY WARNING:
Be sure to wear insulated gloves and protective goggles.
- Remove the HV supply stack sub-assembly.
Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021]
- Inspect the HV supply stack sub-assembly.
- Check that no electrolyte is leaking from the No. 1 HV supply stack sub-assembly or No. 2 HV supply stack sub-assembly.

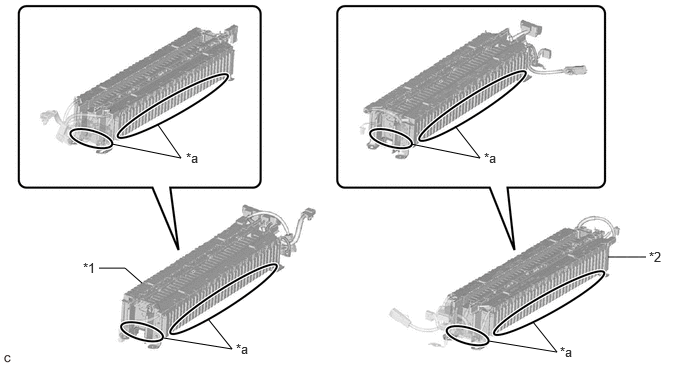

*1 No. 1 HV Supply Stack Sub-assembly *2 No. 2 HV Supply Stack Sub-assembly *a Check Part - - OK
There is no electrolyte leaking from the HV supply stack sub-assembly.
HINT:
If the result is not as specified, replace the No. 1 HV supply stack sub-assembly or No. 2 HV supply stack sub-assembly.
- Check that no electrolyte is leaking from the No. 1 HV supply stack sub-assembly or No. 2 HV supply stack sub-assembly.
- Install the HV supply stack sub-assembly.
Refer to INSTALLATION [06/2020 - 12/2021]
- Remove the HV supply stack sub-assembly.
