Removal [11/2018 - 02/2019]: Procedure

WARNING: This page is about a different variant/trim than selected.

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
REMOVE HV BATTERY
Refer to REMOVAL [11/2018 - 02/2019]
REMOVE UPPER HV BATTERY COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
REMOVE NO. 1 HV BATTERY SHIELD PANEL
Refer to PROCEDURE - Step 4

REMOVE HYBRID BATTERY TERMINAL BLOCK

WARNING:

Be sure to wear insulated gloves and protective goggles.

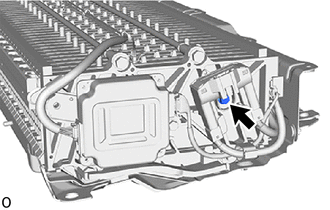

Remove the bolt to separate the hybrid battery terminal block from the HV battery.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

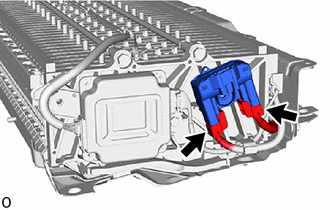

Disconnect the 2 hybrid battery terminal block connectors to remove the hybrid battery terminal block.

NOTE:

Insulate the disconnected high-voltage connectors with insulating tape.
