Installation [11/2018 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSTALL HYBRID BATTERY TERMINAL BLOCK WARNING:
Be sure to wear insulated gloves and protective goggles.
- Connect the 2 hybrid battery terminal block connectors.NOTE:
Make sure that the connectors are connected securely.
- Install the hybrid battery terminal block to the HV battery with the bolt.

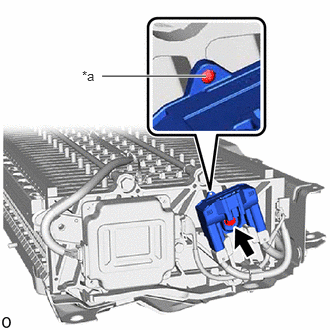

*a Pin Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
NOTE:Make sure to align the hole of the hybrid battery terminal block with the pin.
- Connect the 2 hybrid battery terminal block connectors.
- INSTALL NO. 1 HV BATTERY SHIELD PANEL
Refer to PROCEDURE - Step 2
- INSTALL UPPER HV BATTERY COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- INSTALL HV BATTERY
Refer to INSTALLATION [11/2018 - ]
