Inspection [11/2018 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.

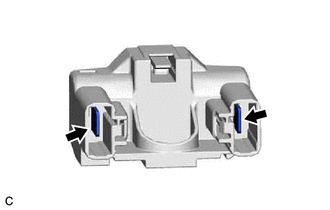

- INSPECT HYBRID BATTERY TERMINAL BLOCK
- Measure the resistance according to the value(s) in the table below.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
| Hybrid Battery Terminal Block |
Always |
Below 1 Ω |
If the result is not as specified, replace the hybrid battery terminal block.
