Installation [11/2018 - ]: Procedure

1. Install the battery cooling blower bracket to the battery cooling blower assembly with the 3 bolts.

   Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

2. Engage the clamp.

1. Install the battery cooling blower assembly to the HV battery with the 2 bolts.

   Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

   NOTE:

   • Be sure not to touch the fan part of the battery cooling blower assembly.
   • Do not lift the battery cooling blower assembly using the wire harness.
2. Connect the battery cooling blower assembly connector.

1. Install the No. 1 hybrid battery intake duct to the battery cooling blower assembly with the 2 clips.
2. Engage the 2 clamps.

1. Attach the 2 guides and install the rear seat cushion leg sub-assembly in the direction indicated by the arrow shown in the illustration.

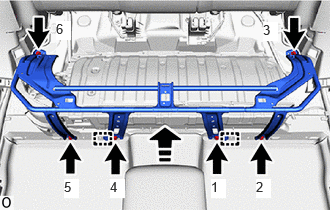

   Fig 1: Rear Seat Cushion Leg Sub-assembly Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

2. Temporarily install the rear seat cushion leg sub-assembly with the 6 bolts.
3. Fully tighten the 6 bolts in the order shown in the illustration.

   Torque: 19.5 N.m (199 kgf/cm, 14 ft.lbf)

1. Engage the 2 guides to install the battery service cover board to the rear seat cushion leg sub-assembly.
2. Engage the 2 clips.

1. Engage the 5 clips and guide.
2. Install the No. 2 battery service cover board with the 2 clips.

HINT:

Use the same procedure as for the LH side.

1. Engage the 5 clips and guide.
2. Install the No. 3 battery service cover board with the 2 clips.

Refer to PROCEDURE - Step 59 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 60 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 58 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 58 [10/2023 - ]

Refer to PROCEDURE - Step 13

Refer to PROCEDURE - Step 14
