Components [11/2018 - ]

WARNING: This page is about a different variant/trim than selected.

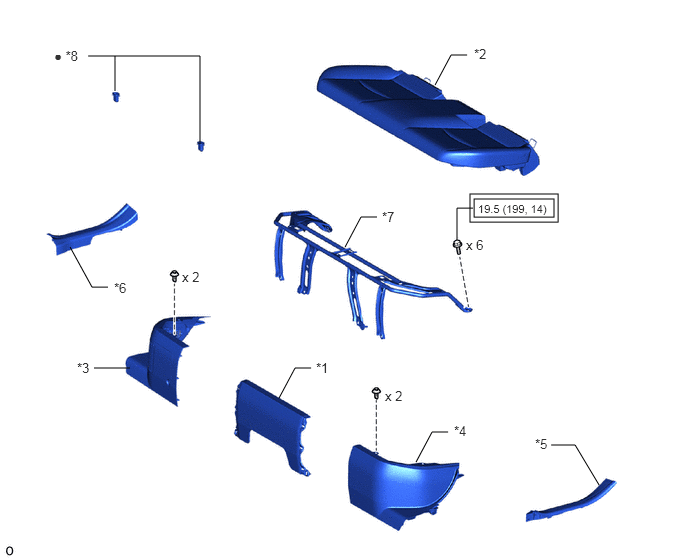

Fig 1: Battery Blower Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY SERVICE COVER BOARD	*2	BENCH TYPE REAR SEAT CUSHION ASSEMBLY
*3	NO. 2 BATTERY SERVICE COVER BOARD	*4	NO. 3 BATTERY SERVICE COVER BOARD
*5	REAR DOOR SCUFF PLATE LH	*6	REAR DOOR SCUFF PLATE RH
*7	REAR SEAT CUSHION LEG SUB-ASSEMBLY	*8	REAR SEAT CUSHION LOCK HOOK
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part

Fig 2: Battery Blower Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY COOLING BLOWER ASSEMBLY	*2	NO. 1 HYBRID BATTERY INTAKE DUCT
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 3: Battery Blower Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	BATTERY COOLING BLOWER ASSEMBLY	*2	BATTERY COOLING BLOWER BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
