Inspection [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSPECT DIFFERENTIAL CASE ASSEMBLY

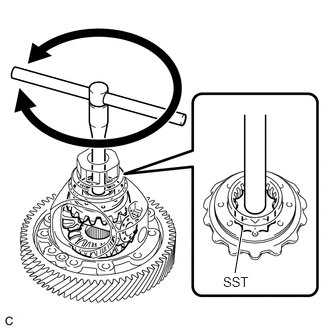

Using SST, rotate the front differential side gear as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard

The front differential side gear does not lock when rotated in either direction.

If the result is not as specified, replace the differential case assembly.
