Components [01/2020 - 11/2024]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Transmission Wire Replacement Components With Torque Specifications [01/2020 - 11/2024] (1 Of 5)
| Callout | Description | Callout | Description |
| *A | for Short Type | *B | for Long Type |
| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT FENDER FRONT SPLASH SHIELD LH |
| *3 | FRONT FENDER FRONT SPLASH SHIELD RH | *4 | NO. 1 ENGINE UNDER COVER |
| *5 | NO. 2 ENGINE UNDER COVER ASSEMBLY | - | - |
| *a | Short Type Front Fender Front Splash Shield | *b | Long Type Front Fender Front Splash Shield |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

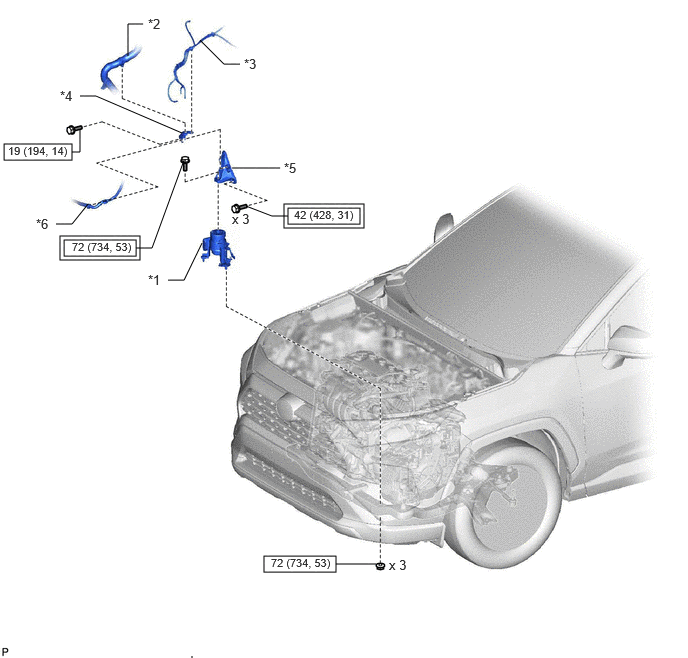

Fig 2: Transmission Wire Replacement Components With Torque Specifications [01/2020 - 11/2024] (2 Of 5)
| Callout | Description | Callout | Description |
| *1 | FRONT ENGINE MOUNTING INSULATOR | *2 | RADIATOR HOSE |
| *3 | VACUUM HOSE | *4 | NO. 1 RADIATOR BRACKET |
| *5 | FRONT ENGINE MOUNTING BRACKET | *6 | NO. 2 ENGINE WIRE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
Fig 3: Transmission Wire Replacement Components With Torque Specifications [01/2020 - 11/2024] (3 Of 5)
| Callout | Description | Callout | Description |
| *1 | REFILL PLUG | *2 | NO. 1 TRANSMISSION OIL FILLER TUBE |
| *3 | OVERFLOW PLUG | *4 | GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |

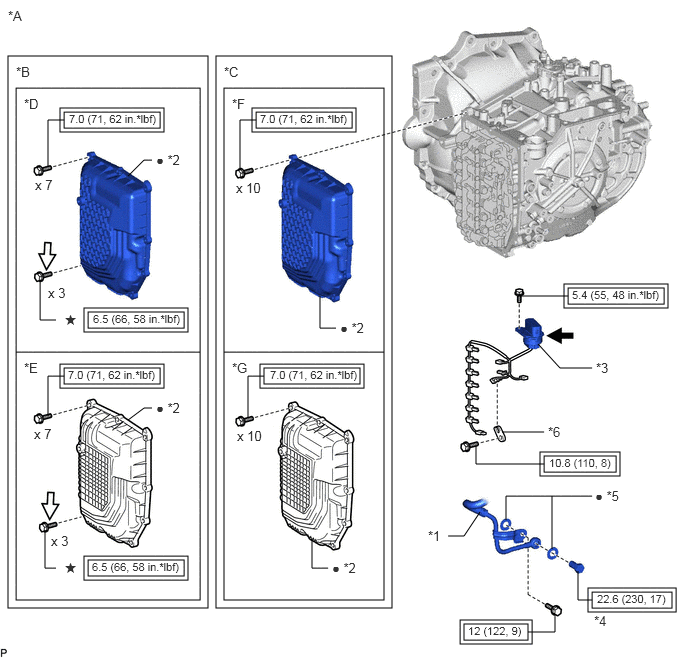

Fig 4: Transmission Wire Replacement Components With Torque Specifications [01/2020 - 11/2024] (4 Of 5)
| Callout | Description | Callout | Description |
| *A | w/o Stop and Start System | *B | for TMMWV Made |
| *C | for AISIN AW Made | *D | for Type A |
| *E | for Type B | *F | for AW (AISIN AW) Made |
| *G | for AWNC (AISIN AW) Made | - | - |
| *1 | OIL COOLER UNION SUB-ASSEMBLY | *2 | TRANSMISSION CASE SIDE COVER |
| *3 | TRANSMISSION WIRE | *4 | OIL COOLER UNION BOLT |
| *5 | GASKET | *6 | TEMPERATURE SENSOR CLAMP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | ||
| * | Precoated part | - | - |
Fig 5: Transmission Wire Replacement Components With Torque Specifications [01/2020 - 11/2024] (5 Of 5)
| Callout | Description | Callout | Description |
| *A | w/ Stop and Start System | *B | for AW (AISIN AW) Made |
| *C | for AWNC (AISIN AW) Made | - | - |
| *1 | OIL COOLER UNION SUB-ASSEMBLY | *2 | TRANSMISSION CASE SIDE COVER |
| *3 | TRANSMISSION WIRE | *4 | OIL COOLER UNION BOLT |
| *5 | GASKET | *6 | TEMPERATURE SENSOR CLAMP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
