Components [11/2018 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY CLAMP SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

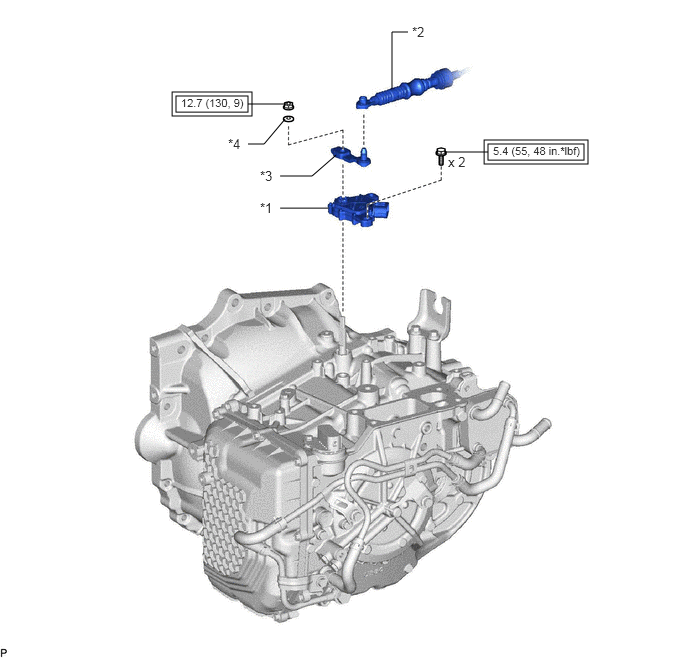

Fig 2: Park / Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	PARK/NEUTRAL POSITION SWITCH ASSEMBLY	*2	TRANSMISSION CONTROL CABLE ASSEMBLY
*3	TRANSMISSION CONTROL SHAFT LEVER	*4	WASHER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
