Section 65 (Hybrid Control System (AWD, W/ Nickel Metal Hydride Battery) - Diagnostic Codes (2 Of 8))
>>
HYBRID CONTROL SYSTEM (for AWD with NICKEL METAL HYDRIDE BATTERY)
>>
DTC P0A81-11: Hybrid/EV Battery Cooling Fan 1 Circuit Short to Ground; DTC P0A81-4B: Hybrid/EV Battery Cooling Fan 1 Over Temperature [06/2020 - ]
>>
Wiring Diagram

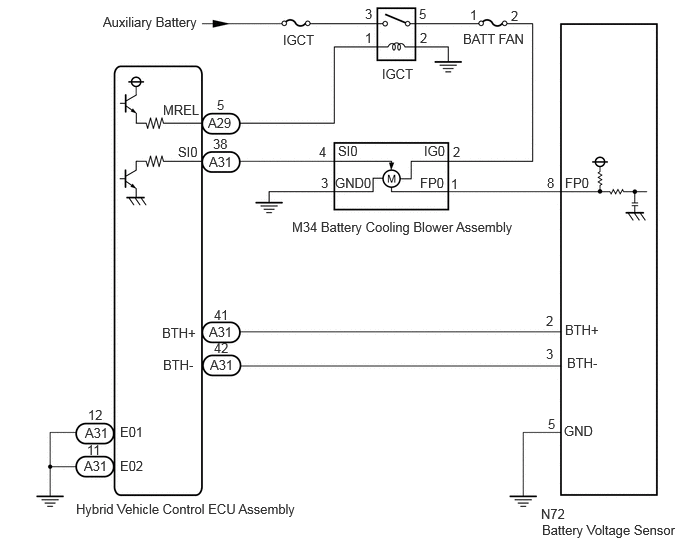

DTC P0A81-11: Hybrid/EV Battery Cooling Fan 1 Circuit Short to Ground; DTC P0A81-4B: Hybrid/EV Battery Cooling Fan 1 Over Temperature [06/2020 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
for TMMC Made:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for TMC Made:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
