Section 57 (Automatic Transaxle System (UB80E) - Diagnostics - Introduction (1 Of 2))
>>
Automatic Transaxle System
>>
System Diagram [10/2019 - 12/2021]
>>
System Diagram [10/2019 - 12/2021]
System Diagram [10/2019 - 12/2021]
WARNING:
This page is about a different variant/trim than selected.

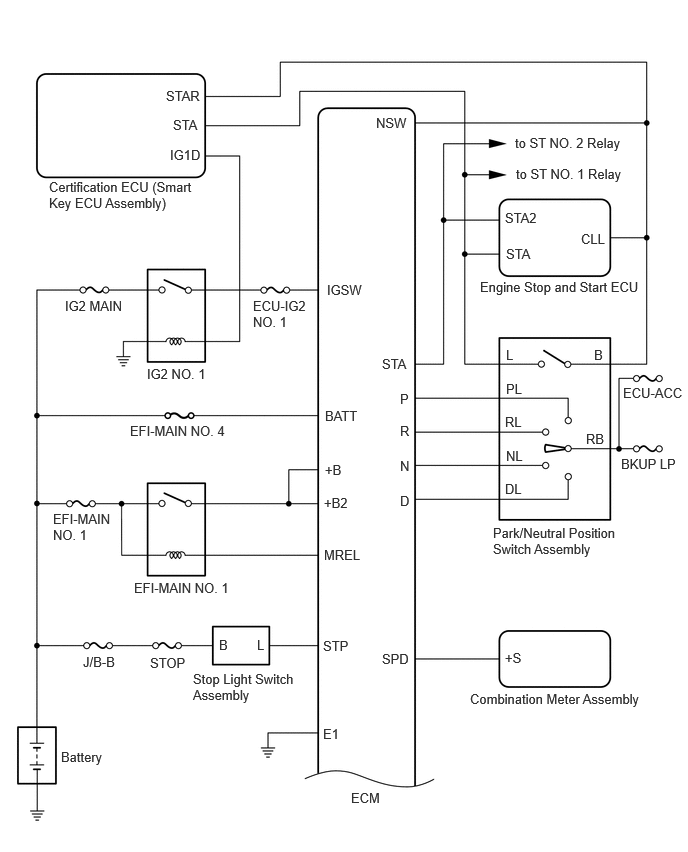

w/ Stop and Start System:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

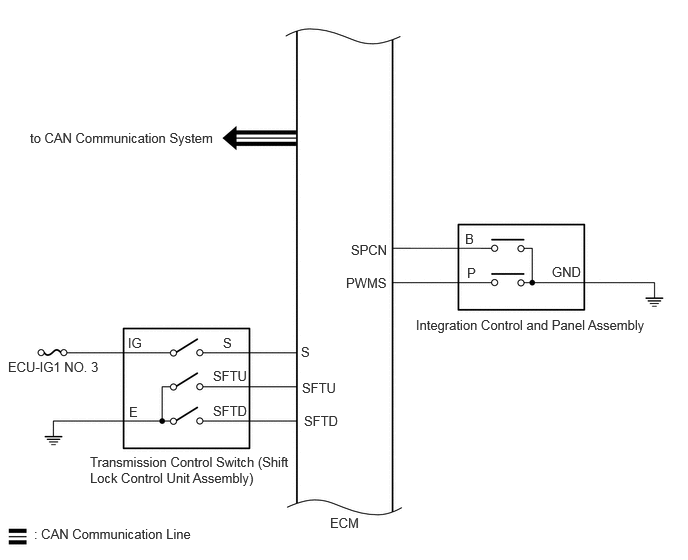

w/o Stop and Start System:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/o Stop and Start System:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
