Parts Location [10/2019 - 08/2020]: Illustration

WARNING: This page is about a different variant/trim than selected.

Fig 1: Automatic Transaxle System Replacement Components (1 Of 4) [10/2019 - 08/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ECM

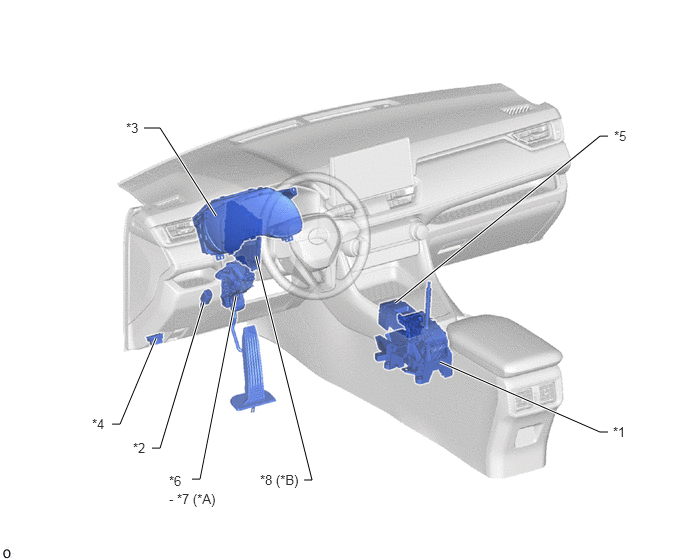

Fig 1: Automatic Transaxle System Replacement Components (2 Of 4) [10/2019 - 08/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Kick Down Switch	*B	w/ Stop and Start System
*1	SHIFT LOCK CONTROL UNIT ASSEMBLY (TRANSMISSION CONTROL SWITCH)	*2	STOP LIGHT SWITCH ASSEMBLY
*3	COMBINATION METER ASSEMBLY	*4	DLC3
*5	INTEGRATION CONTROL AND PANEL ASSEMBLY - SPORT MODE SWITCH - NORMAL MODE SWITCH	*6	ACCELERATOR PEDAL SENSOR
*7	KICK DOWN SWITCH	*8	ENGINE STOP AND START ECU

Fig 1: Automatic Transaxle System Replacement Components (3 Of 4) [10/2019 - 08/2020]

*1	SOLENOID (SL1) VALVE	*2	SOLENOID (SL2) VALVE
*3	SOLENOID (SL3) VALVE	*4	SOLENOID (SL4) VALVE
*5	SOLENOID (SL5) VALVE	*6	SOLENOID (SL6) VALVE
*7	SOLENOID (SL) VALVE	*8	SOLENOID (SLU) VALVE
*9	SOLENOID (SLT) VALVE	*10	TRANSMISSION WIRE - ATF TEMPERATURE SENSOR

Fig 1: Automatic Transaxle System Replacement Components (4 Of 4) [10/2019 - 08/2020]

*1	PARK/NEUTRAL POSITION SWITCH ASSEMBLY	*2	TRANSMISSION REVOLUTION SENSOR (NT)
*3	TRANSMISSION REVOLUTION SENSOR (NC)	-	-
