Removal [02/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 16 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 16 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 16 [10/2023 - ]

  2. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY
    1. Disconnect ignition or starter switch assembly connector.

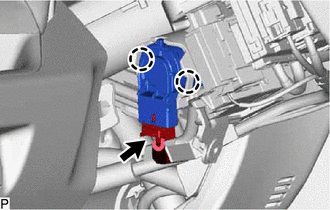

      GTY848693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws and remove the ignition or starter switch assembly from the upper steering column bracket assembly.
