Components [02/2019 - ]

WARNING: This page is about a different variant/trim than selected.

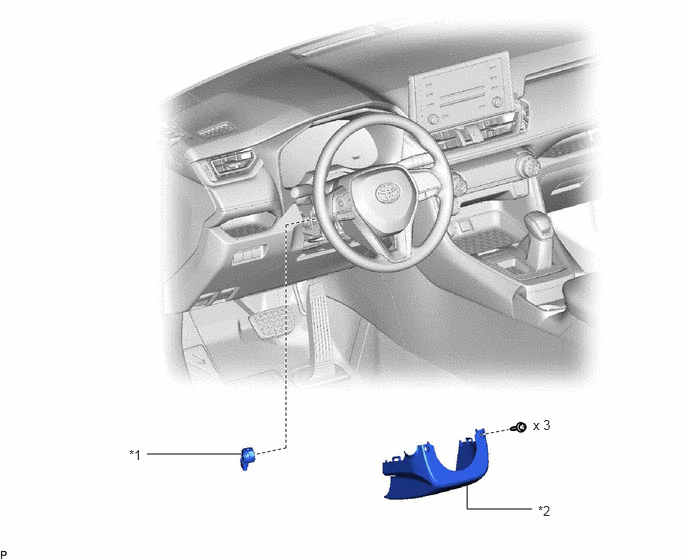

Fig 1: Ignition Switch Replacement Components
GTY886163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 IGNITION OR STARTER SWITCH ASSEMBLY *2 LOWER STEERING COLUMN COVER SUB-ASSEMBLY
