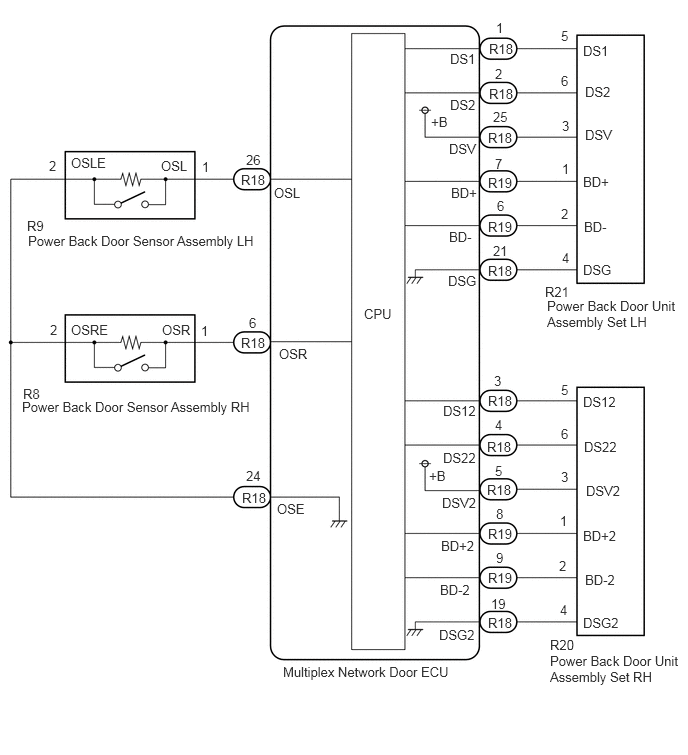

Jam Protection Function Activates During Power Back Door Operation [11/2018 - 10/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY874788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
