Parts Location [11/2018 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

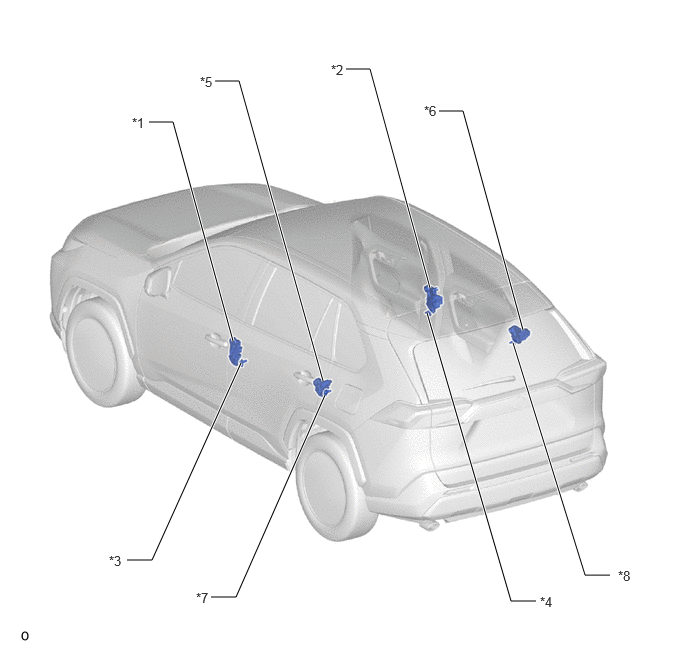

Fig 1: Wireless Door Lock Control System (For Hv Model, With Smart Key System) Replacement Components (1 Of 3) [11/2018 - ]
| *1 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH | *2 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY RH |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *5 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |

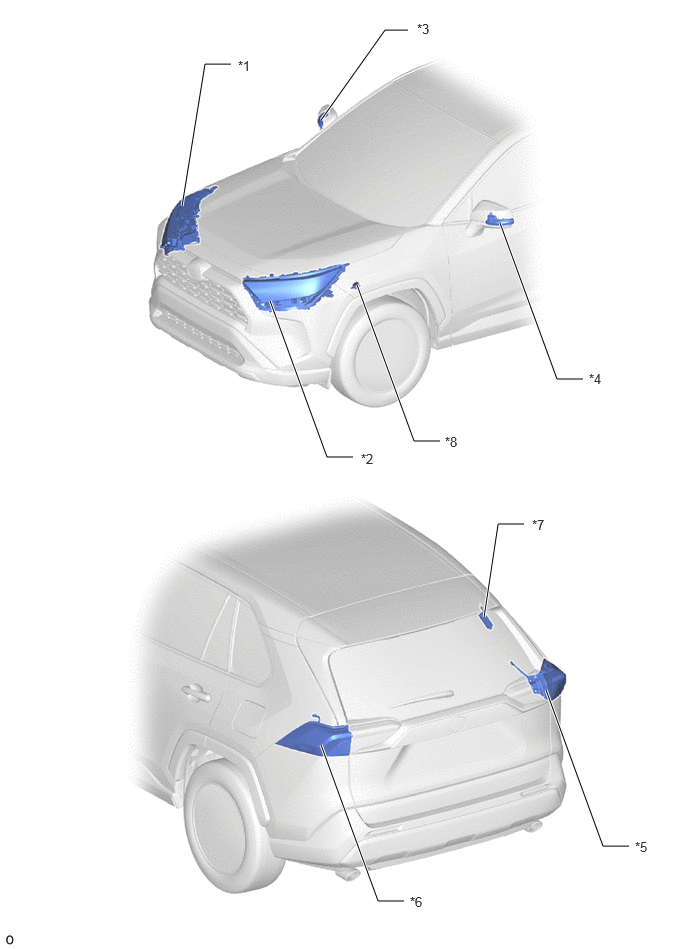

Fig 1: Wireless Door Lock Control System (For Hv Model, With Smart Key System) Replacement Components (2 Of 3) [11/2018 - ]
| *1 | HEADLIGHT ASSEMBLY RH - TURN SIGNAL LIGHT |
*2 | HEADLIGHT ASSEMBLY LH - TURN SIGNAL LIGHT |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY RH - TURN SIGNAL LIGHT |
*6 | REAR COMBINATION LIGHT ASSEMBLY LH - TURN SIGNAL LIGHT |
| *7 | DOOR CONTROL RECEIVER | *8 | WIRELESS DOOR LOCK BUZZER |

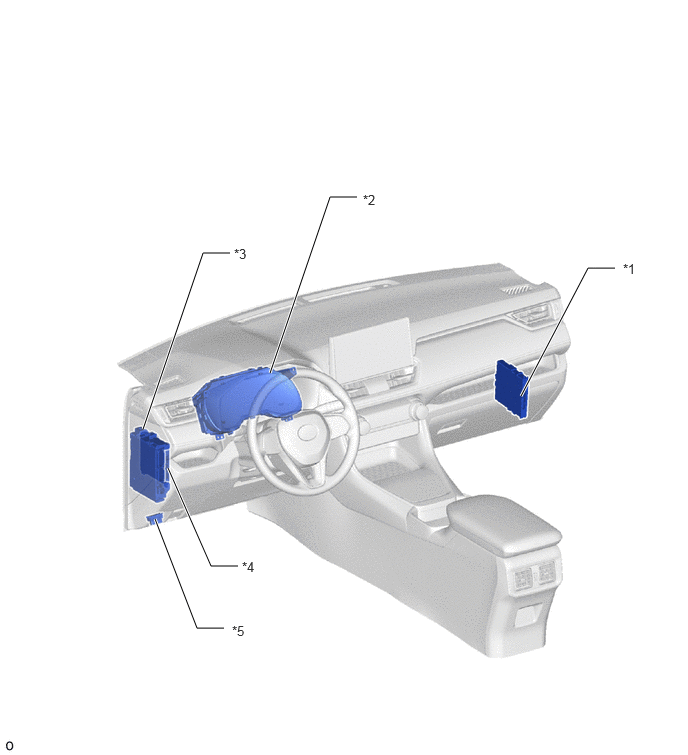

Fig 1: Wireless Door Lock Control System (For Hv Model, With Smart Key System) Replacement Components (3 Of 3) [11/2018 - ]
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | COMBINATION METER ASSEMBLY |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - AM2 FUSE - ECU-IG1 NO. 4 FUSE - ECU-ACC FUSE - ECU-B NO. 3 FUSE |
*4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | DLC3 | - | - |
