Hybrid Battery ECU Communication Stop Mode [12/2021 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK FOR OPEN IN CAN BUS WIRE (BATTERY ECU ASSEMBLY BRANCH WIRE)
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the battery ECU assembly connector.

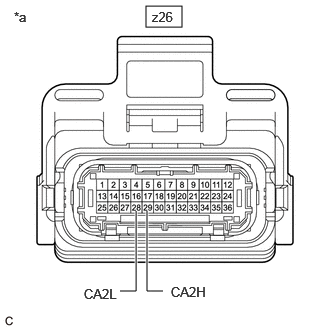

      GTY972634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Battery ECU Assembly)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      z26-29 (CA2H) - z26-28 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      z26-3 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
      z26-27 (GND) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω

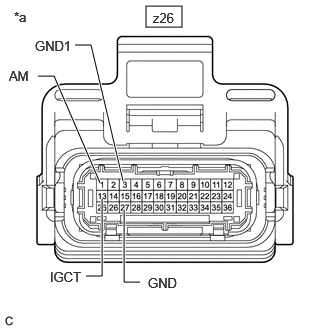

      GTY972679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Battery ECU Assembly)
    2. Reconnect the cable to the negative (-) auxiliary battery terminal.
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [12/2021 - 10/2022] , or refer to INITIALIZATION [10/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      z26-1 (AM) - Body ground Ignition switch off 11 to 14 V
      z26-13 (IGCT) - Body ground Ignition switch ON 11 to 14 V
      Ignition switch off Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BATTERY ECU ASSEMBLY

    Refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
