Section 43 (Can Communication System (HV) - Circuit Tests (1 Of 6) & Diagnostic Codes)
>>
CAN COMMUNICATION SYSTEM (for HV Model)
>>
Headlight ECU RH Communication Stop Mode [02/2019 - 12/2021]
>>
Wiring Diagram

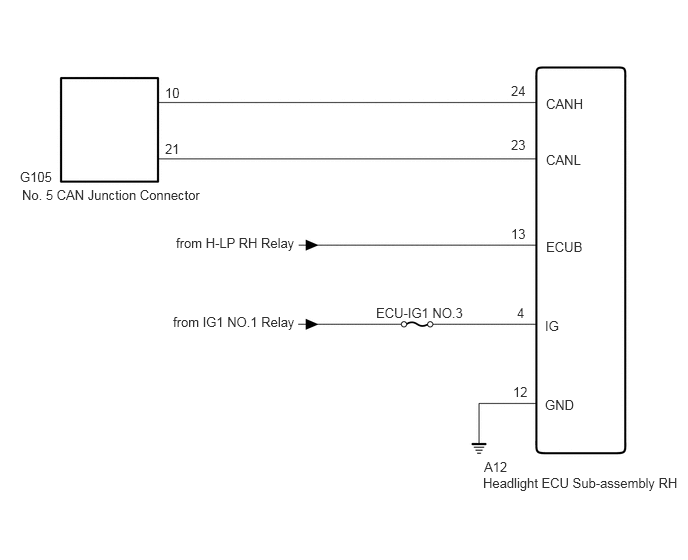

Headlight ECU RH Communication Stop Mode [02/2019 - 12/2021]: Wiring Diagram
