Headlight ECU LH Communication Stop Mode [11/2018 - 02/2019]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK FOR OPEN IN CAN BUS WIRE (HEADLIGHT ECU SUB-ASSEMBLY LH BRANCH WIRE)
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the headlight ECU sub-assembly LH connector.
      GTY897271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Headlight ECU Sub-assembly LH)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A11-24 (CANH) - A11-23 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

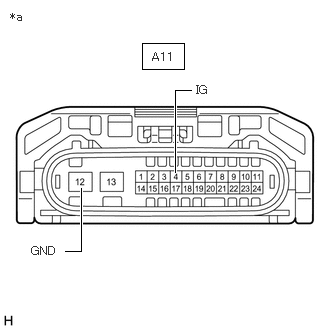

      GTY897270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Headlight ECU Sub-assembly LH)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A11-12 (GND) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
    2. Reconnect the cable to the negative (-) auxiliary battery terminal.
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [11/2018 - 02/2019]

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A11-4 (IG) - Body ground Power switch on (IG) 11 to 14 V
      Power switch off Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the voltage according to the value(s) in the table below.

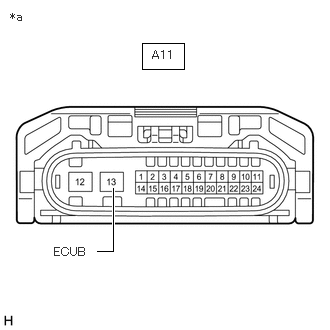

      GTY897272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Headlight ECU Sub-assembly LH)

      Standard Voltage

      Tester Connection Condition Specified Condition
      A11-13 (ECUB) - Body ground For approximately 15 seconds after the power switch is turned on (IG) or off 11 to 14 V
      Approximately 15 seconds elapsed after turning the power switch off Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH

    Refer to REMOVAL [11/2018 - 02/2019]

    Result:

    NG

    GO TO LIGHTING SYSTEM

    Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - 08/2020]
