Components [11/2018 - 12/2021]

WARNING: This page is about a different variant/trim than selected.

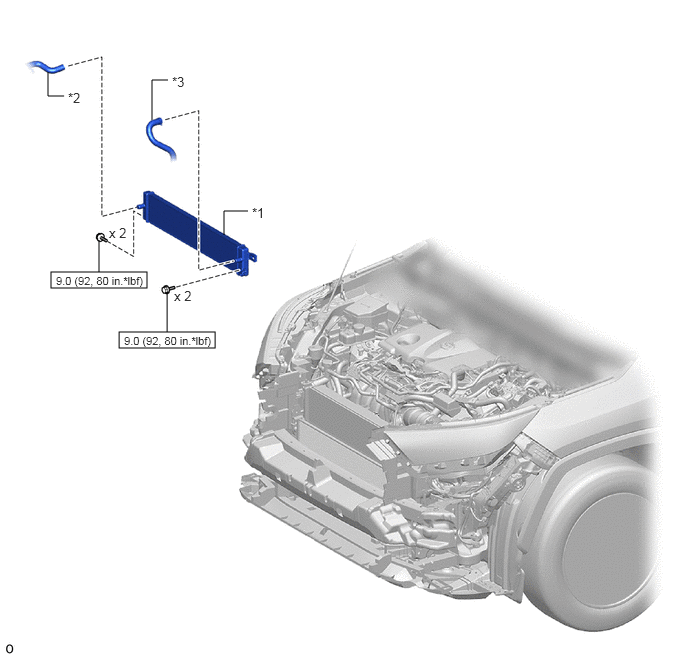

Fig 1: Sub Radiator Replacement Components With Torque Specifications [11/2018 - 12/2021]
GTY925703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 RADIATOR ASSEMBLY *2 NO. 3 INVERTER COOLING HOSE
*3 NO. 4 INVERTER COOLING HOSE - -
N.m (kgf/cm, ft.lbf): Specified torque - -
