Installation [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL HYBRID BATTERY THERMISTOR

WARNING:

Be sure to wear insulated gloves and protective goggles.

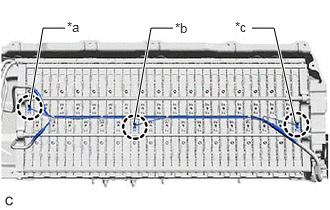

Engage the 3 claws of the hybrid battery thermistor (sensor portions) to install the hybrid battery thermistor to the HV battery.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	1st Module from the HV Battery Junction Block Assembly Side (Wire harness color: Blue)
*b	14th Module from the HV Battery Junction Block Assembly Side (Wire harness color: White)
*c	34th Module from the HV Battery Junction Block Assembly Side (Wire harness color: Red)

HINT:

Install each hybrid battery thermistor (sensor portion) to the appropriate location shown in the illustration.

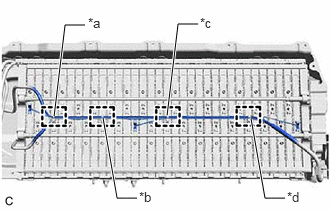

Engage the 4 clamps in the locations shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	4th Module from the HV Battery Junction Block Assembly Side
*b	10th Module from the HV Battery Junction Block Assembly Side
*c	18th Module from the HV Battery Junction Block Assembly Side
*d	28th Module from the HV Battery Junction Block Assembly Side

Connect the battery voltage sensor connector.
Engage the clamp.

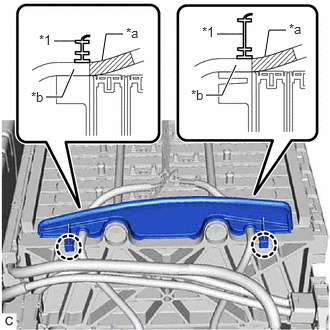

Engage the 2 claws to install the No. 1 hybrid battery packing to the HV battery.

*1	No. 1 Hybrid Battery Packing
*a	Tape
*b	Hybrid Battery Thermistor Wire Harness

NOTE:

Align each piece of tape on the wire harness of the hybrid battery thermistor with the edge of the No. 1 hybrid battery packing as shown in the illustration and then engage the 2 claws to install the No. 1 hybrid battery packing to the HV battery.

Engage the clamp.

INSTALL NO. 1 HV BATTERY INTAKE DUCT LH
WARNING:
Be sure to wear insulated gloves and protective goggles.
1. Engage the claw of hybrid battery thermistor (sensor portion) to connect the hybrid battery thermistor to the No. 1 HV battery intake duct LH.
2. Install the No. 1 HV battery intake duct LH to the HV battery with the clip.
INSTALL NO. 2 HYBRID BATTERY SHIELD SUB-ASSEMBLY
WARNING:
Be sure to wear insulated gloves and protective goggles.
1. Pull back the rear No. 1 HV battery shield and install the No. 2 hybrid battery shield sub-assembly to the HV battery.
  HINT:

  Pull back the rear No. 1 HV battery shield until there is sufficient clearance for the stud bolt of the No. 2 hybrid battery shield sub-assembly.
2. Install the 5 nuts.
  Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
INSTALL HV BATTERY JUNCTION BLOCK ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL UPPER HV BATTERY COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
INSTALL HV BATTERY
Refer to INSTALLATION [11/2018 - ]
