Parts Location [10/2022 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

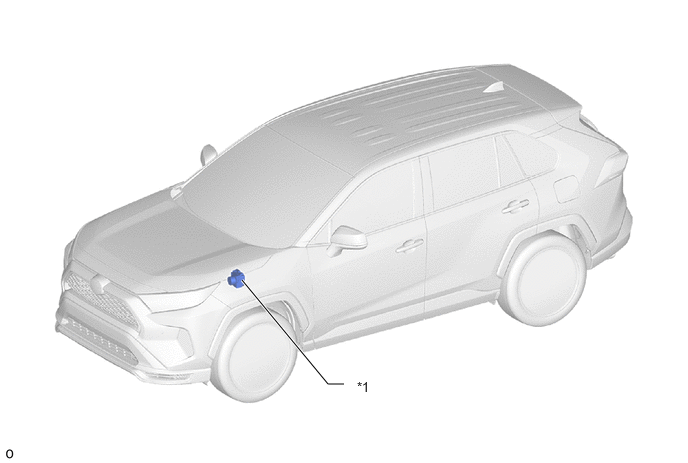

Fig 1: Smart Key System (For Start Function, Hv Model) Replacement Components (1 Of 3) [10/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BRAKE ACTUATOR ASSEMBLY
- NO. 2 SKID CONTROL ECU

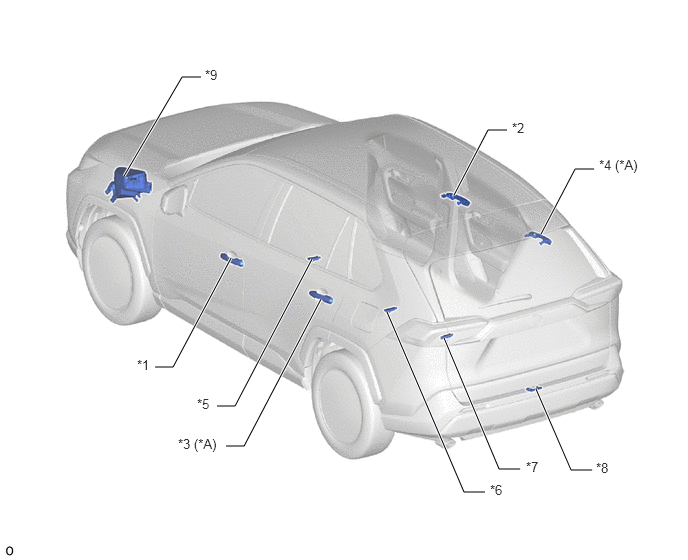

Fig 1: Smart Key System (For Start Function, Hv Model) Replacement Components (2 Of 3) [10/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Rear Door Entry	-	-
*1	FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR	*2	FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR
*3	REAR DOOR OUTSIDE HANDLE ASSEMBLY LH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR	*4	REAR DOOR OUTSIDE HANDLE ASSEMBLY RH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR
*5	NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR)	*6	NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR)
*7	NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT)	*8	ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT)
*9	NO. 1 ENGINE ROOM RELAY BLOCK - ECU-IG2 NO. 1 FUSE - ECU-IG2 NO. 2 FUSE - IG2 NO. 1 RELAY	-	-

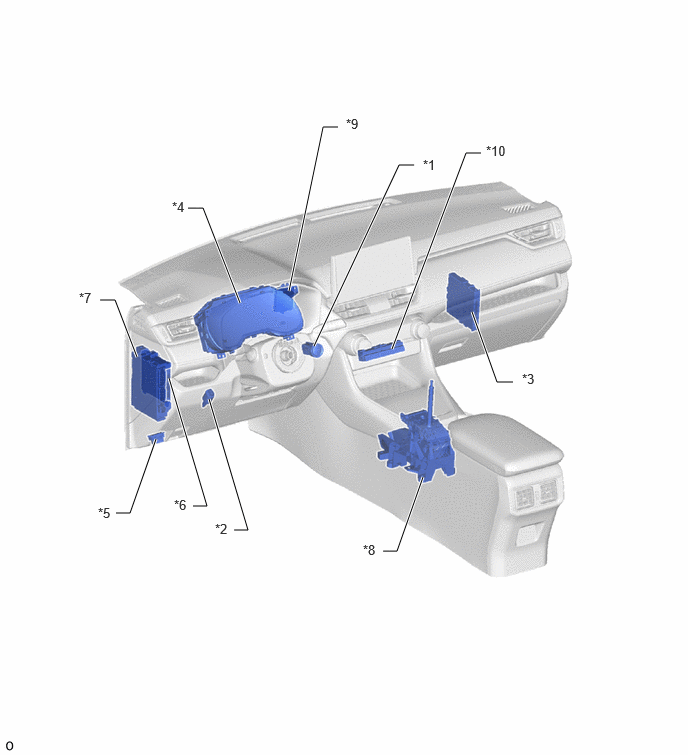

Fig 1: Smart Key System (For Start Function, Hv Model) Replacement Components (3 Of 3) [10/2022 - ]

*1	POWER SWITCH	*2	STOP LIGHT SWITCH ASSEMBLY
*3	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*4	COMBINATION METER ASSEMBLY
*5	DLC3	*6	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*7	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - WASHER FUSE - AM2 FUSE - ECU-IG1 NO. 1 FUSE - STRG LOCK FUSE - P/OUTLET NO. 1 FUSE - SFT LOCK-ACC FUSE - ECU-ACC FUSE - ECU-IG2 NO. 3 FUSE - ECU-DCC NO. 2 FUSE - ECU-B NO. 1 FUSE - ECU-ACC RELAY - IG1 NO. 1 RELAY - IG1 NO. 2 RELAY - IG2 NO. 2 RELAY	*8	SHIFT LOCK CONTROL UNIT ASSEMBLY
*9	ID CODE BOX (IMMOBILISER CODE ECU)	*10	TELLTALE LIGHT ASSEMBLY - SECURITY INDICATOR LIGHT
