Removal [08/2020 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [08/2020 - ]

  2. REMOVE EGR VALVE ASSEMBLY

    Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - ]

  3. REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

    Refer to PROCEDURE - Step 1

  4. REMOVE PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 1

  5. DISCONNECT ENGINE WIRE
    1. Disconnect the No. 5 engine wire connector.
      GTY763895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and disconnect the engine wire from the cylinder head sub-assembly.
    3. Remove the bolt.
      GTY915002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the wire harness clamp and disconnect the engine wire from the intake manifold.
  6. DISCONNECT NO. 3 WATER BY-PASS PIPE

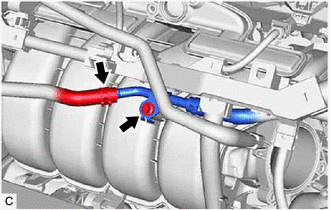

    1. Slide the clip and disconnect the No. 5 water by-pass hose from the No. 3 water by-pass pipe.
      GTY754164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, remove the bolt and disconnect the No. 3 water by-pass pipe from the intake manifold.
  7. REMOVE NO. 2 WATER BY-PASS PIPE
    1. Detach the wire harness clamp and disconnect the HV air conditioning wire.
      GTY742337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, remove the 2 bolts (A) and separate the No. 2 water by-pass pipe from the intake manifold.
    3. Remove the bolt (B) and No. 2 water by-pass pipe from the cylinder block sub-assembly.
  8. REMOVE NO. 2 FUEL VAPOR FEED HOSE

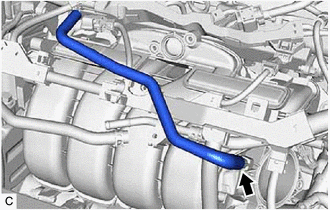

    1. Remove the No. 2 fuel vapor feed hose from the intake manifold.
      GTY771529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE INTAKE MANIFOLD

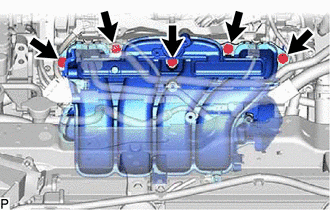

    1. w/o Stud Bolt:
      GTY943117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 5 bolts and intake manifold from the cylinder head sub-assembly.

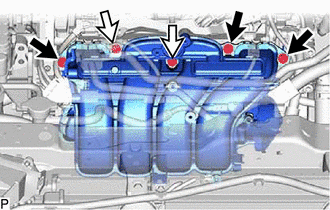

    2. w/ Stud Bolt:
      GTY865114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
      1. Remove the 3 bolts, 2 nuts and intake manifold from the cylinder head sub-assembly.
  10. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET

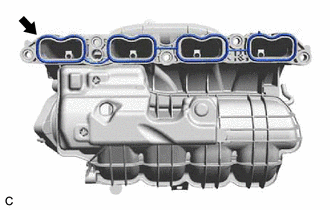

    1. Remove the No. 1 intake manifold to head gasket from the intake manifold.
      GTY754160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 ENGINE COVER

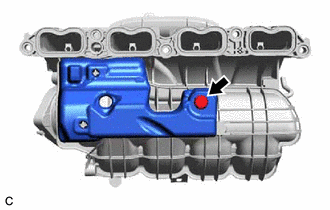

    1. Remove the clip and No. 1 engine cover.
      GTY771528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE VACUUM HOSE

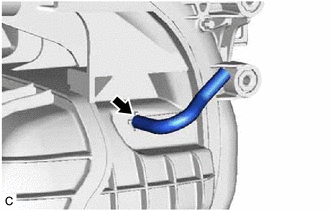

    1. Remove the vacuum hose from the intake manifold.
      GTY754161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
