On-Vehicle Inspection [02/2019 - 08/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSPECT INTAKE SYSTEM

WARNING:

To prevent injury due to contact with an operating cooling fan, keep your hands and clothing away from the cooling fans when working in the engine compartment with the engine running or the power switch on (IG).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform Inspection After Repair after repairing vacuum leaks in the intake system.

w/ Canister Pump Module:
Refer to INITIALIZATION [02/2019 - 10/2019] , or refer to INITIALIZATION [10/2019 - 08/2020]
w/o Canister Pump Module:
Refer to INITIALIZATION [11/2018 - 08/2020]

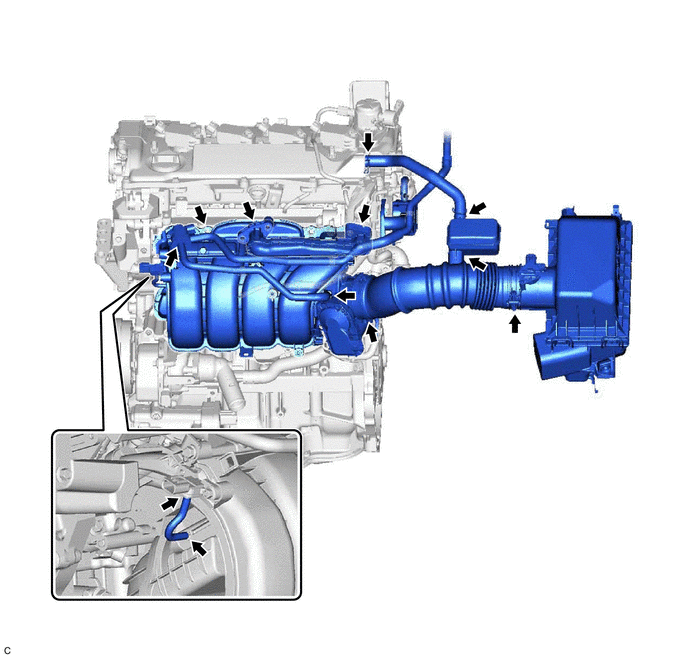

Check that there are no vacuum leaks at the points shown in the illustration.

PERFORM INITIALIZATION
1. Perform Inspection After Repair after repairing vacuum leaks in the intake system.
  - w/ Canister Pump Module:
    Refer to INITIALIZATION [02/2019 - 10/2019] , or refer to INITIALIZATION [10/2019 - 08/2020]
  - w/o Canister Pump Module:
    Refer to INITIALIZATION [11/2018 - 08/2020]
