Removal [12/2021 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE EGR COOLER ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  2. DISCONNECT ENGINE WIRE
    1. Detach the 3 hose clamps and disconnect the No. 1 fuel vapor feed hose and No. 2 fuel vapor feed hose.
      GTY744461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Fuel Vapor Feed Hose
      *2 No. 2 Fuel Vapor Feed Hose

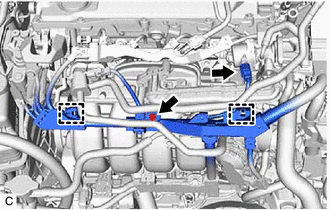

    2. Disconnect the EGR valve assembly connector.
      GTY1000349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt.
    4. Detach the 2 wire harness clamps and disconnect the engine wire.
  3. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY

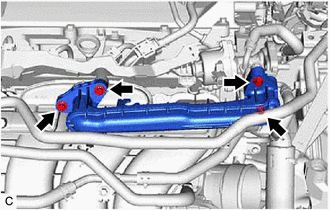

    1. Using an 8 mm socket wrench, remove the 4 bolts and No. 1 EGR pipe sub-assembly from the intake manifold and EGR valve assembly.
      GTY1000348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the EGR valve adapter gasket from the No. 1 EGR pipe sub-assembly.
      GTY1000347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the EGR inlet gasket from the intake manifold.
      GTY754218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE EGR VALVE ASSEMBLY

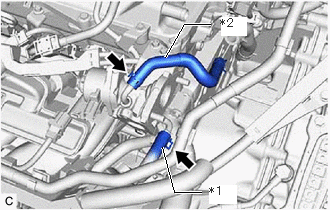

    1. GTY1000502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 8 Water By-pass Hose
      *2 No. 4 Water By-pass Hose

      Slide the clip and disconnect the No. 8 water by-pass hose from the EGR valve assembly.

    2. Slide the clip and remove the No. 4 water by-pass hose from the EGR valve assembly.

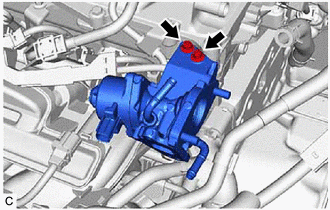

    3. Using an 8 mm socket wrench, remove the 2 bolts and EGR valve assembly from the camshaft housing.
      GTY1000345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
