Removal [11/2018 - 02/2019]: Procedure

Refer to PROCEDURE - Step 1

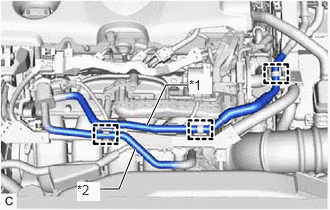

1. Disengage the 3 hose clamps and disconnect the No. 1 fuel vapor feed hose and No. 2 fuel vapor feed hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Fuel Vapor Feed Hose
   *2	No. 2 Fuel Vapor Feed Hose

2. Disconnect the EGR valve assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

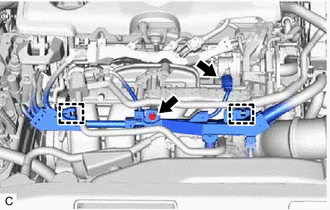

3. Remove the bolt.
4. Disengage the 2 wire harness clamps and disconnect the engine wire.

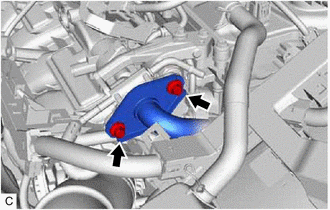

1. Remove the 2 bolts and disconnect the EGR cooler assembly from the EGR valve assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the EGR valve gasket from the EGR valve assembly.

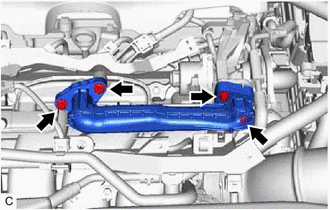

1. Using an 8 mm socket wrench, remove the 4 bolts and No. 1 EGR pipe sub-assembly from the intake manifold and EGR valve assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the EGR valve adapter gasket from the No. 1 EGR pipe sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

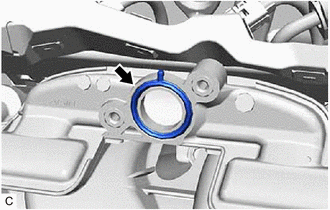

3. Remove the EGR inlet gasket from the intake manifold.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

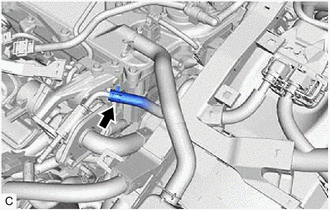

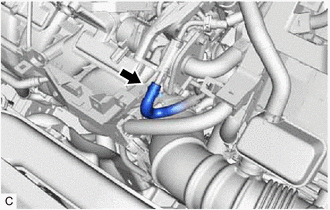

1. Slide the clip and disconnect the No. 8 water by-pass hose from the EGR valve assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

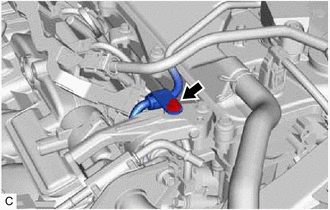

2. Slide the clip and disconnect the No. 4 water by-pass hose from the EGR valve assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Using an 8 mm socket wrench, remove the bolt and disconnect the fuel pipe sub-assembly from the EGR valve bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

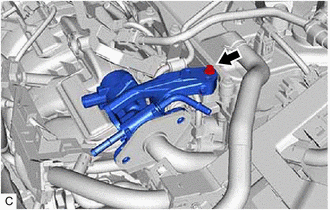

4. Using an 8 mm socket wrench, remove the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Remove the EGR valve assembly with the EGR valve bracket from the camshaft housing vertically.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

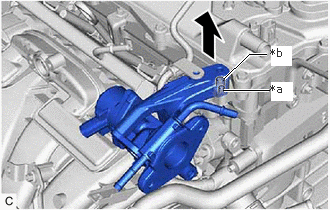

   *a	Pin
   *b	Hole

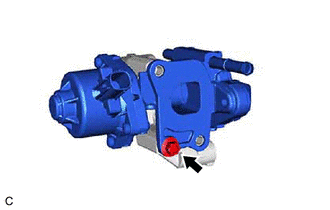

6. Using an 8 mm socket wrench, remove the bolt and EGR valve assembly from the EGR valve bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
