Removal [02/2019 - 08/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.

DRAIN ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 1
REMOVE INVERTER WITH CONVERTER ASSEMBLY
- for 2WD:
  Refer to REMOVAL [02/2019 - 10/2019] , or refer to REMOVAL [10/2019 - 08/2020]
- for AWD:
  Refer to REMOVAL [02/2019 - 10/2019] , or refer to REMOVAL [10/2019 - 06/2020] , or refer to REMOVAL [06/2020 - 08/2020]

REMOVE EGR COOLER ASSEMBLY

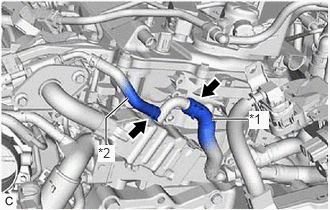

Slide the 2 clips and disconnect the No. 3 water by-pass hose and No. 4 water by-pass hose from the EGR cooler assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 3 Water By-pass Hose
*2	No. 4 Water By-pass Hose

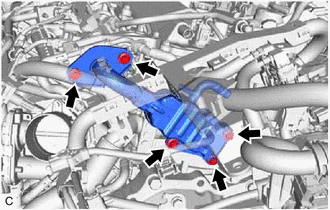

Remove the 5 bolts and EGR cooler assembly from the cylinder head sub-assembly and EGR valve assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

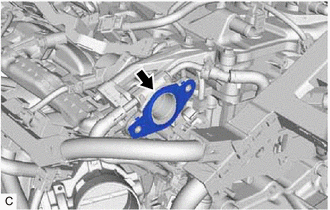

Remove the EGR valve gasket from the EGR valve assembly.

Remove the EGR cooler gasket from the EGR cooler assembly.
