Inspection [11/2018 - 08/2020]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSPECT CHARCOAL CANISTER ASSEMBLY NOTE:
When applying vacuum, the needle may waver, but as long as the needle returns to its initial position immediately, it is not a malfunction.
- Visually check the charcoal canister assembly for cracks or damage.
If cracks or damage is found, replace the charcoal canister assembly.
- Check the air flow.

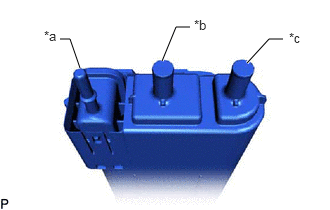

*a Port A *b Port B *c Port C - Using a vacuum pump, check the air flow according to the procedures below.
OK
Measurement Condition Specified Condition Ports B and C closed, and vacuum applied to port A (2 kPa (15 mmHg, 0.590 in.Hg)) No air leaks Port B closed, and vacuum applied to port A (2 kPa (15 mmHg, 0.590 in.Hg)) Air flows from port C Port C closed and air blown into port A (8 kPa (0.1 kgf/cm2 , 1.2 psi)) Air flows from port B Air blown into port A (8 kPa (0.1 kgf/cm2 , 1.2 psi)) Air flows from ports B and C If the result is not as specified, replace the charcoal canister assembly.
