Installation [02/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL LEAK DETECTION PUMP SUB-ASSEMBLY

    HINT:

    Only perform this procedure when replacement of the leak detection pump sub-assembly is necessary.

    1. Attach the 2 claws to install a new leak detection pump sub-assembly to the charcoal canister sub-assembly.

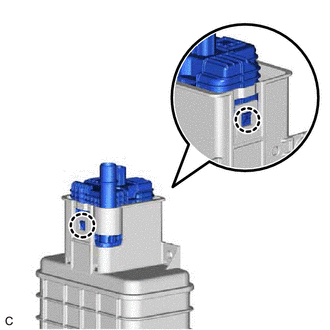

      GTY763864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not allow foreign matter such as grease, oil or water to adhere to the O-ring.
      • Ensure that the claws are attached properly.
  2. INSTALL CANISTER (CHARCOAL CANISTER ASSEMBLY)
    1. Install the clip to the vehicle body.
    2. Attach the claw to install the canister (charcoal canister assembly) to the vehicle body as shown in the illustration.

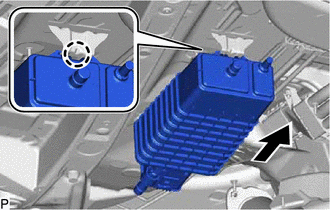

      GTY944057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the clip to connect the canister (charcoal canister assembly).
    4. Install the 2 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    5. Connect the purge line hose to the canister (charcoal canister assembly), and slide the clip to secure the hose.
    6. Push the fuel tank vent hose onto the canister (charcoal canister assembly) and push in the retainer to attach the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.
      • After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling on the tube connector.

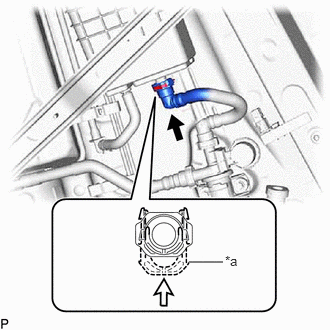

      GTY889333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push
      Push in
    7. Connect the leak detection pump sub-assembly connector.
    8. Push in the fuel tank vent hose sub-assembly onto the leak detection pump sub-assembly and push in the retainer to attach the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (leak detection pump sub-assembly) before performing this work.
      • After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the tube connector.

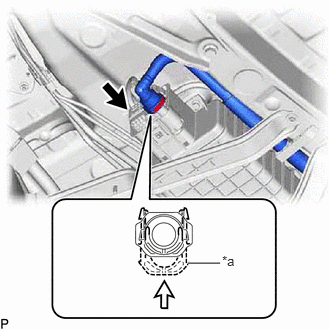

      GTY876498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push
      Push in
  3. INSTALL FRONT CENTER FLOOR COVER

    Refer to PROCEDURE - Step 11 [02/2019 - 06/2020] , or refer to PROCEDURE - Step 11 [06/2020 - 08/2020] , or refer to PROCEDURE - Step 11 [08/2020 - ]

  4. INSTALL FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 41 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 41 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 41 [12/2021 - ]
