Components [02/2019 - ]
WARNING: This page is about a different variant/trim than selected.

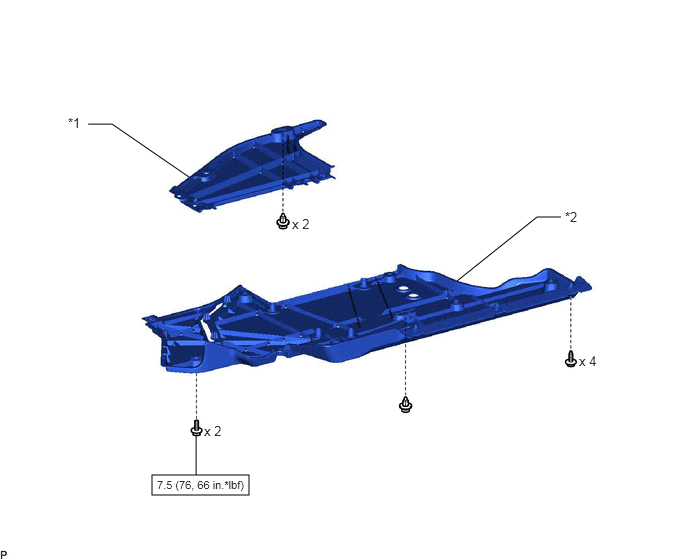

Fig 1: Canister (W/ Canister Pump Module) Replacement Components With Torque Specifications (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT CENTER FLOOR COVER | *2 | FRONT FLOOR COVER LH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

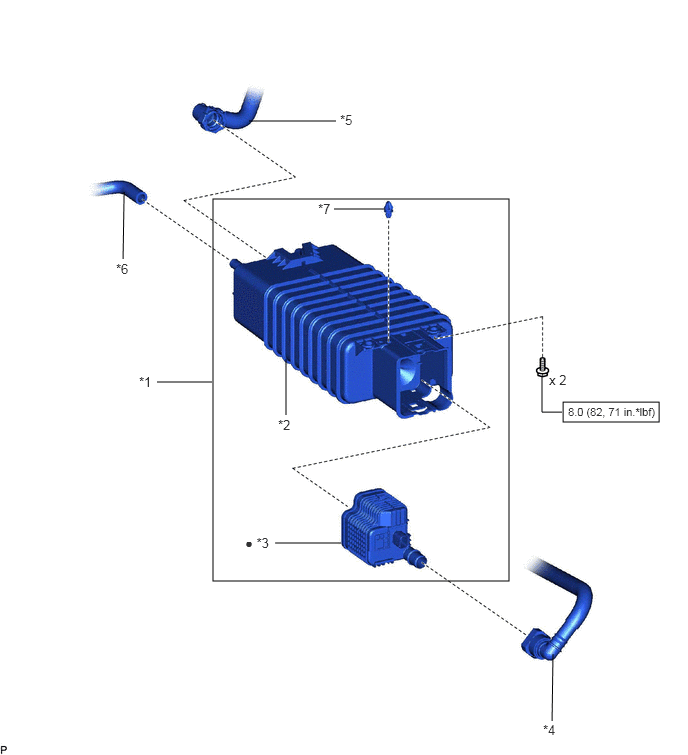

Fig 2: Canister (W/ Canister Pump Module) Replacement Components With Torque Specifications (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CANISTER (CHARCOAL CANISTER ASSEMBLY) | *2 | CHARCOAL CANISTER SUB-ASSEMBLY |
| *3 | LEAK DETECTION PUMP SUB-ASSEMBLY | *4 | FUEL TANK VENT HOSE SUB-ASSEMBLY |
| *5 | FUEL TANK VENT HOSE | *6 | PURGE LINE HOSE |
| *7 | CLIP | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
