Terminals Of Ecu [10/2022 - ]

WARNING: This page is about a different variant/trim than selected.

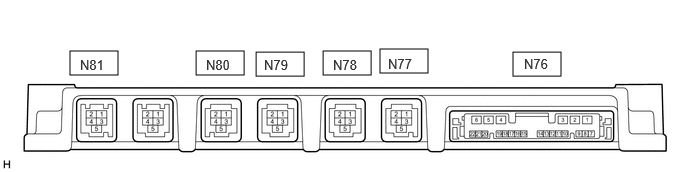

  1. PARKING ASSIST ECU
    GTY1121539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the N76 parking assist ECU connector.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      Terminal No. (Symbol) Terminal Description Condition Specified Condition
      N76-1 (+B) - N76-4 (GND1) Power source signal Always 11 to 14 V
      N76-2 (IG) - N76-4 (GND1) IG power source signal Ignition switch ON 11 to 14 V
      Ignition switch off Below 1 V
      N76-4 (GND1) - Body ground Ground Always Below 1 Ω
    3. Reconnect the N76 parking assist ECU connector.
    4. Measure the voltage and resistance according to the value(s) in the table below.
      Terminal No. (Symbol) Terminal Description Condition Specified Condition
      N76-7 (REV) Reverse signal input Ignition switch ON, shift lever in R 11 to 14 V
      Ignition switch ON, shift lever except R Below 1 V
      N76-10 (RSW+) - N76-4 (GND1) Terminal required by law Panoramic image being displayed 0 to 2 V
      Panoramic image not being displayed 5.5 to 7.05 V
      N76-11 (BLSW) - N76-4 (GND1) Panoramic view monitor switch signal Ignition switch ON, panoramic view monitor switch off 5.5 to 6.5 V
      Ignition switch ON, panoramic view monitor switch on Below 1 V
      N76-12 (CANH) CAN communication line - -
      N76-13 (CANL) CAN communication line - -
      N82-1 (GB+) Power source to video signal Ignition switch ON 7.5 to 9.0 V
      N82-2 (GGND) Video signal ground - -
      N82-3 (GVO+) Video signal (Digital) - -
      N82-4 (GVO-) Video signal (Digital) Always Below 1 Ω
      N82-5 (SGND) Shield ground Always Below 1 Ω
      N77-1 (BCB+) - N77-2 (BGND) Power source to front television camera Ignition switch ON 7.5 to 8.5 V
      N77-2 (BGND) - Body ground Front television camera assembly ground Always Below 1 Ω
      N77-3 (BCV+) Front television camera assembly display signal input - -
      N77-4 (BCV-) Front television camera assembly display ground - -
      N77-5 (SGND) - Body ground Front television camera assembly ground (shield) Always Below 1 Ω
      N79-1 (LCB+) - N79-2 (LGND) Power source to side television camera assembly LH Ignition switch ON 7.5 to 8.5 V
      N79-2 (LGND) - Body ground Side television camera assembly LH ground Always Below 1 Ω
      N79-3 (LCV+) Side television camera assembly LH display signal input - -
      N79-4 (LCV-) Side television camera assembly LH display ground - -
      N79-5 (SGND) - Body ground Side television camera assembly LH ground (shield) Always Below 1 Ω
      N80-1 (CB+) - N80-2 (CGND) Power source to rear television camera assembly Ignition switch ON 7.5 to 8.5 V
      N80-2 (CGND) - Body ground Rear television camera assembly ground Always Below 1 Ω
      N80-3 (CV+) Rear television camera assembly display signal input - -
      N80-4 (CV-) Rear television camera assembly display ground - -
      N80-5 (SGND) - Body ground Rear television camera assembly ground (shield) Always Below 1 Ω
      N78-1 (RCB+) - N78-2 (RGND) Power source to side television camera assembly RH Ignition switch ON 7.5 to 8.5 V
      N78-2 (RGND) - Body ground Side television camera assembly RH ground Always Below 1 Ω
      N78-3 (RCV+) Side television camera assembly RH display signal input - -
      N78-4 (RCV-) Side television camera assembly RH display ground - -
      N78-5 (SGND) - Body ground Side television camera assembly RH ground (shield) Always Below 1 Ω
  2. RADIO AND DISPLAY RECEIVER ASSEMBLY

    Refer to TERMINALS OF ECU [10/2022 - ]
