Section 3 (Panoramic View Monitor System (HV) - Diagnostics - Introduction)
>>
PANORAMIC VIEW MONITOR SYSTEM (for HV Model)
>>

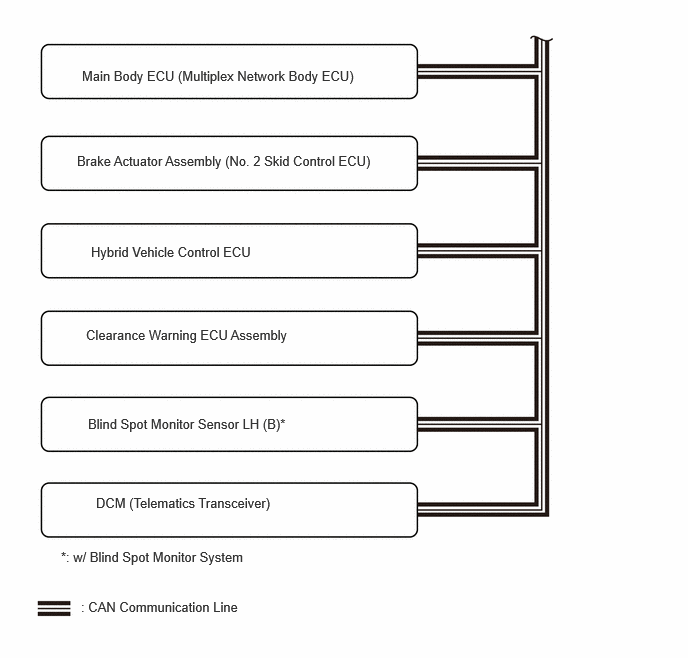

System Diagram [10/2022 - ]
>>

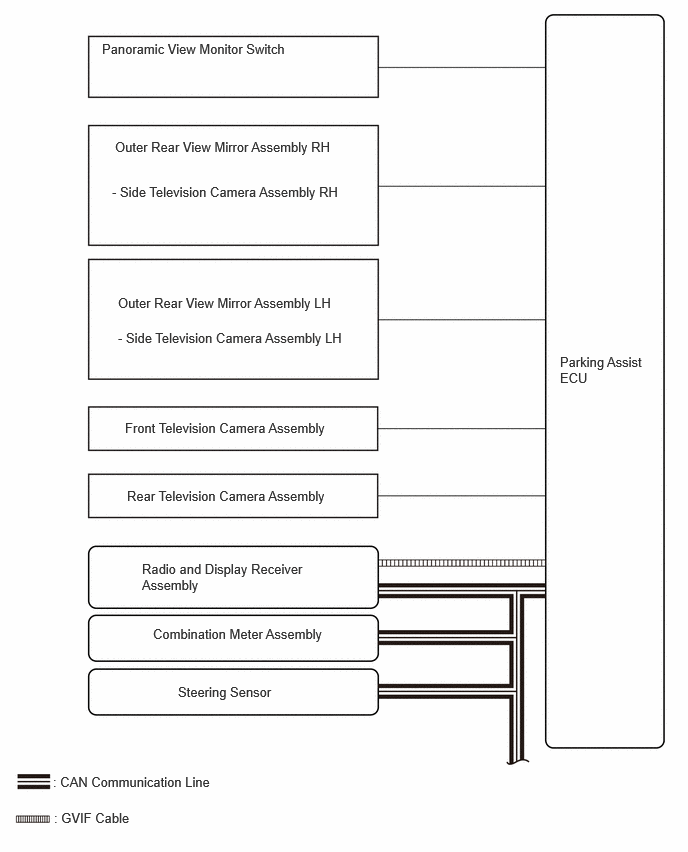

System Diagram [10/2022 - ]
System Diagram [10/2022 - ]
WARNING:
This page is about a different variant/trim than selected.
