DTC P0A1F-94: Hybrid/EV Battery Energy Control Module Unexpected Operation [06/2020 - ]: Procedure
- CHECK DTC OUTPUT (HYBRID CONTROL, HV BATTERY)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Enter the following menus: Powertrain / Hybrid Control and HV Battery / Trouble Codes.
- Check for DTCs.
Powertrain > Hybrid Control > Trouble Codes
Powertrain > HV Battery > Trouble Codes
Result
Result Proceed to "P0A1F-94" only is output, or DTCs except the ones in the table below are also output. A Simultaneous output of DTCs of hybrid control systems other than P0A1F-94. B Any of the following DTCs are also output. C System Relevant DTC Hybrid battery system P1A00-1C Hybrid Battery Stack 2 Cell Voltage Detection Voltage Out of Range P301A-1C Hybrid Battery Stack 1 Cell Voltage Detection Voltage Out of Range - Turn the ignition switch off.
Result:
A
REPLACE BATTERY ECU ASSEMBLY
Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
Result:
B
GO TO DTC CHART (HYBRID CONTROL SYSTEM)
Refer to DIAGNOSTIC TROUBLE CODE CHART [06/2020 - 12/2021] , or refer to DIAGNOSTIC TROUBLE CODE CHART [12/2021 - 11/2024] , or refer to DIAGNOSTIC TROUBLE CODE CHART [11/2024 - ]
Result:
C
See step 2
- CHECK DTC
- Check the DTCs that were output when the vehicle was brought to the workshop.
Result
Result Proceed to "P1A00-1C" is also output. A "P301A-1C" is also output. B
Result:
B
See step 6
Result:
A
See step 3
- Check the DTCs that were output when the vehicle was brought to the workshop.
- CHECK CONNECTOR CONNECTION CONDITION (BATTERY ECU ASSEMBLY CONNECTOR) WARNING:
Be sure to wear insulated gloves and protective goggles.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Remove the No. 1 HV battery hose.
Refer to PROCEDURE - Step 23 [06/2020 - 08/2020] , or refer to PROCEDURE - Step 23 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 23 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 23 [10/2023 - ]

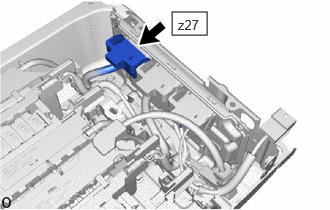

- Check the connections of the z27 battery ECU assembly connector.
Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [11/2018 - ]
OK
The connector is connected securely and there are no contact problems.
- Install the No. 1 HV battery hose.
Result
Result Proceed to OK A Not connected securely The terminals are not damaged or corroded B Not connected securely The terminals are damaged or corroded C
Result:
B
CONNECT SECURELY
Result:
C
REPLACE NO. 2 HV SUPPLY STACK SUB-ASSEMBLY
Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
Result:
A
See step 4
- Check that the service plug grip is not installed.
- CHECK FREEZE FRAME DATA
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Enter the following menus: Powertrain / HV battery / Trouble Codes.
- Read the value of freeze frame data items "Hybrid/EV battery cell 36 voltage" through "Hybrid/EV battery cell 70 voltage" for DTC P1A00-1C and make a note if the value of any is 1.6 V or less.
Powertrain > HV Battery > Trouble Codes
- Turn the ignition switch off.
Result
Proceed to NEXT
Result:
NEXT
See step 5
- CHECK NO. 2 HV SUPPLY STACK SUB-ASSEMBLY (HYBRID BATTERY CELL VOLTAGE)
Refer to PROCEDURE - Step 7
Result
Result Proceed to The voltage between the terminals is 1.6 V or less. A Other than above B Result:
A
REPLACE NO. 2 HV SUPPLY STACK SUB-ASSEMBLY
Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
Result:
B
REPLACE BATTERY ECU ASSEMBLY
Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
- CHECK CONNECTOR CONNECTION CONDITION (BATTERY ECU ASSEMBLY CONNECTOR) WARNING:
Be sure to wear insulated gloves and protective goggles.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Remove the No. 1 HV battery hose.
Refer to PROCEDURE - Step 23 [06/2020 - 08/2020] , or refer to PROCEDURE - Step 23 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 23 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 23 [10/2023 - ]

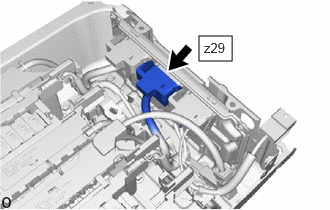

- Check the connections of the z29 battery ECU assembly connector.
Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [11/2018 - ]
OK
The connector is connected securely and there are no contact problems.
Result
Result Proceed to OK A Not connected securely The terminals are not damaged or corroded B Not connected securely The terminals are damaged or corroded C - Install the No. 1 HV battery hose.
Result:
B
CONNECT SECURELY
Result:
C
REPLACE NO. 1 HV SUPPLY STACK SUB-ASSEMBLY
Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
Result:
A
See step 7
- Check that the service plug grip is not installed.
- CHECK FREEZE FRAME DATA
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Enter the following menus: Powertrain / HV battery / Trouble Codes.
- Read the value of freeze frame data items "Hybrid/EV battery cell 1 voltage" through "Hybrid/EV battery cell 35 voltage" for DTC P301A-1C and make a note if the value of any is 1.6 V or less.
Powertrain > HV Battery > Trouble Codes
- Turn the ignition switch off.
Result
Proceed to NEXT
Result:
NEXT
See step 8
- CHECK NO. 1 HV SUPPLY STACK SUB-ASSEMBLY (HYBRID BATTERY CELL VOLTAGE)
Refer to PROCEDURE - Step 4
Result
Result Proceed to The voltage between the terminals is 1.6 V or less. A Other than above B Result:
A
REPLACE NO. 1 HV SUPPLY STACK SUB-ASSEMBLY
Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
Result:
B
REPLACE BATTERY ECU ASSEMBLY
Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
